FRP Mould Grating Mesh 38x38mm. High 25mm./38mm./50mm.,Type Food Grade, NonSlip ผิวกันลื่น **Cut to Order เดิมลูกค้าตลาดสดโซนอาหารทะเลใช้ตะแกรงเหล็ก แต่เกิดปัญหาสนิมกัดกร่อนจนผุเร็วมากต้องเปลี่ยนทุก 1-2 ปี เนื่องจากต้องล้างพื้นกำจัดกลิ่นคาวทุกวัน แต่หลังจากเปลี่ยนมาใช้ตะแกรง FRP แล้ว ใช้งานได้นานกว่า 30 ปี น้ำหนักเบา ล้างทำความสะอาดง่าย


1) ตะแกรงไฟเบอร์เสริมแรง FRP Mould Grating เป็นวัสดุนวัตกรรมใหม่ล่าสุด ออกแบบเพื่อมาทดแทนแสตนเลส/อลูมิเนียม/ไม้/เหล็ก อายุการใช้งานนานกว่า 30-100 ปี ไม่ต้องเปลี่ยนบ่อย รับประกันคุณภาพ สวยงาม ทนทาน คุ้มราคา
2) มีคุณสมบัติเหมือนสแตนเลส ไม่เป็นสนิม ทนความร้อนสูง ทนสารเคมีกัดกร่อนได้ดี ที่สำคัญสวยงาม มีสีสรรดีไซน์ในตัว และมีน้ำหนักเบากว่าทุกวัสดุ แข็งแรง ทนแดด ทนสารเคมี เป็นวัสดุมาใหม่เพื่อใช้ทดแทนสแตนเลสได้ดี
3) แผ่นมาตรฐานมีขนาดใหญ่ 1500x4000mm. ใช้ทำเป็นแผ่นพื้นยกระดับไร้รอยต่อได้ดี สามารถนำไปตัดเป็นแผ่นเล็กๆตามที่ต้องการได้ หรือใช้ปูทั้งแผ่นไร้รอยต่อสำหรับงานทางเดิน Walkway ติดตั้งและบำรุงรักษาง่าย
4) ออกแบบเพื่อเป็นแผ่นตะแกรงระบายน้ำ/โปร่งแสง หรือเป็นฝาบ่อ-ฝาครอบท่อ/แผ่นปูพื้นผิวทึบปิดสนิทลายตีนเป็ด (Top Cover) สั่งตัดได้ทุกขนาด ตัดง่ายด้วยเครื่องมือใบตัดไฟเบอร์(ลูกหมู)
5) แผ่นตะแกรง FRP Grating สูง 25mm. แกนหนา 6.5mm ขนาดช่องรู 38x38mm. มีให้เลือก 5 สี เหลือง เขียว เทา น้ำเงิน และดำ หรือ มีความสูงที่ 38mm. และ 50mm.
6) ตะแกรง FRP Grating นำเข้าจากยุโรป เป็นเกรด A ระดับ Premium World Class Quality ส่งขายในอเมริกา ญี่ปุ่น เกาหลีใต้ สิงคโปร์ มาเลย์เซีย etc. รับประกัน 3-5ปี มีสต๊อคพร้อมส่งทันที กว่า 5,000 ตรม. เนื่องจากสินค้ามีหลายเกรด กรณีต้องการตะแกรง FRP ราคาถูกเกรดจากประเทศจีน กรุณาระบุ

Grating Manhole Cover Projects Reference ตัวอย่างลูกค้า การประยุกต์ใช้ วิธีการเลือกซื้อ ตะแกรงไฟเบอร์กล๊าส ฝาบ่อฝาท่อปิดบ่อพักระบายน้ำ

กรอบตะแกรงปกป้องรอบโคนต้นไม้ tree ring guard trench grating cover

Grating Manhole Cover Projects Reference ตัวอย่างลูกค้า การประยุกต์ใช้ วิธีการเลือกซื้อ ตะแกรงไฟเบอร์กล๊าส ฝาบ่อฝาท่อปิดบ่อพักระบายน้ำ

1. Type Eco-Grade (Can be work in -50 to 60 Celcius Degree)
Economy orthopthalic polyester grating, moderate corrosion resistance and fire retardant, flame spread rating. Such gratings can be used in the special environments of sea water, weak acid, and waste water system. The operation temperature can be -50 to 60 Celsius with normal working load. Flame Spread: ASTM E84 rating of 25 or less
2. Type Food-Grade (Can be work in -50 to 90 Celcius Degree)
This type improved food-grade Isophthalic mixed with vinyl polyester resin system offers antimicrobial properties to inhibit the growth of mold on the surface of the composite to protect itself along with the necessary corrosion resistance. Industrial grade corrosion resistance and fire retardant, flame spread rating. Such gratings can be used in the special environments of middle concentration inorganic acid, inorganic alkali, etc. The operation temperature can be -50 to 90 Celsius with normal working load.
3. Type Superior-Grade (Can be work in -50 to 110 Celcius Degree)
A Superior vinyl ester resin corrosion resistance and fire retardant, flame spread rating. It offers outstanding resistance to a wide range of highly corrosive situations, ranging from caustic to acidic. Such gratings can be used in the special environments of corrosion with either acid or alkali or both. The operation temperature can be -50 to 110 Celsius with normal working load.

วิธีการติดตั้งตะแกรงระบายน้ำ ควรออกแบบเตรียมบ่ารับให้กว้างและสูงพอดีกับแผ่นตะแกรง เพื่อความแข็งแรงและปลอดภัยของการใช้งาน การติดตั้งตะแกรงระบายน้ำจะต้องออกแบบเตรียมบ่ารองรับให้กว้างและสูงพอดีกับแผ่นตะแกรงระบายน้ำ โดยมาตรฐานทั่วไป ตะแกรงเหล็กและพลาสติคมีความกว้าง 2 ขนาด คือ กว้าง 25cm. และ 30cm. ดังนั้นบ่ารับตะแกรง(รูปตัว L) จะต้องใช้เหล็กฉากวางลงไปก่อนเทคอนกรีต โดยเว้นความสูงไว้ 25-30mm. (ขึ้นอยู่กับประเภทของตะแกรง)เพื่อให้ตะแกรงที่วางลงไปเสมอพอดีกับพื้น ไม่สะดุดเวลารถเข็นหรือคนเดินผ่าน ส่วนความกว้างของบ่ารับเมื่อวัดแล้วจะต้องเว้นเผื่อไว้ 5-10mm. ดังนี้

ระยะความกว้างของบ่ารับแผ่นเกรตติ้ง จะต้องบวกเพิ่มข้างละ 3-5mm. รวม 2 ข้างเป็น 6-10mm.
Ex-1 กรณีใช้ตะแกรง กว้าง 25cm. จะต้องเตรียมบ่ารับเผื่อไว้ = 25.5-26.0 cm.
Ex-2 กรณีใช้ตะแกรง กว้าง 30cm. จะต้องเตรียมบ่ารับเผื่อไว้ = 30.5-31.0 cm.



รูปภาพแสดง วิธีการติดตั้งเหล็กฉาก รองรับตะแกรงระบายน้ำ
ความสูง ของเหล็กฉากที่เหมาะสม เพื่อให้ตะแกรงไม่ต่ำหรือสูงกว่าระดับพื้น ไม่สะดุดมีเสียงดัง
ใช้เหล็กฉากรองรับ วางลงไปก่อนเทคอนกรีต ให้พอดีกับความสูงตะแกรง โดยปกติเหล็กฉาก สูง 25-30 มม. (เคลียร์ใน หรือ L ใน) ความสูงของเหล็กฉากควรเท่ากันพอดีกับความสูงของตะแกรงที่นำมาวาง เพื่อให้ตะแกรงที่วางลงไปเสมอพอดีกับพื้น ไม่สะดุดเวลารถเข็นหรือคนเดินผ่าน

ความกว้าง ของเหล็กฉากที่เหมาะสม เพื่อให้สามารถวางตะแกรงได้ไม่คับแน่น หรือหลวมจนทำให้ตะแกรงร่วงตกหล่นลงไป
ส่วนความกว้างของบ่ารับเมื่อวัดแล้วจะต้องเว้นเผื่อความกว้างของตะแกรงจริงๆ ไว้ 5-10mm. ดังนี้ ระยะความกว้างของบ่ารับแผ่นตะแกรงเกรตติ้ง จะต้องบวกเพิ่มข้างละ 3-5mm. รวม 2 ข้างเป็น 6-10mm.

ตะแกรง FRP สามารถสั่งตัดได้ทุกขนาด จากแผ่นใหญ่มาตรฐาน 1.5×4 เมตร หลังการตัดถ้าไม่ออกแบบให้พอดีจะทำให้เกิดเป็นรอยแง่งที่ไม่ลงตัว ลักษณะเหมือนการเปิดขอบ ดังนั้นถ้าหากต้องการให้ปิดขอบพอดี จำเป็นต้องเปรียบเทียบกับตารางการปิดขอบก่อนสั่งตัด


***** ข้อมูลเพิ่มเติมกรุณาติดต่อจากบริษัท


Grating Manhole Cover Projects Reference ตัวอย่างลูกค้า การประยุกต์ใช้ วิธีการเลือกซื้อ ตะแกรงไฟเบอร์กล๊าส ฝาบ่อฝาท่อปิดบ่อพักระบายน้ำ

***** ความสามารถในการรับแรงของตะแกรง FRP ขึ้นอยู่กับ
1) หน้ากว้างของตะแกรงยิ่งกว้างมากยิ่งรับแรงได้น้อย
2)ความหนาของแผ่นตะแกรง การเลือกใช้ตะแกรงที่หนามากขึ้นก็จะรับแรงได้มากขึ้น
3)รูปแบบของแรงกด เป็นแบบกระจายน้ำหนักหรือเป็นแบบกดที่จุดเดียว ข้อมูลเพิ่มเติมกรุณาติดต่อจากบริษัท

***** สารเคมีที่สามารถทนการกัดกร่อนได้ในตารางที่แสดงนี้เป็นเพียงบางส่วนเท่านั้น สารเคมีอื่นๆ กรุณาขอข้อมูลเพิ่มเติมจากบริษัทได้โดยตรง

ราคา ตัวคลิปล็อคยึดจับตะแกรงเหล็ก Saddle Clip Lock Fastener

Installation recommendation-whenever possible provided for a minimum of 1.5” (40mm) bearing support at all grating support points. Hold down clips should be used at the rate of one clip for every 6 square feet (0.56square meters) of grating minimum, or at least 4 clips for any square or rectangular piece, or at least 3 for a triangular piece.
การใช้ตะแกรงเป็นแผ่นรางระบายน้ำไม่จำเป็นต้องล็อคให้ยึดติดถาวร แต่กรณีใช้เป็นแผ่นปูพื้นทางเดิน หรือแผ่นยกระดับ แนะนำให้ใช้คลิปล็อคสแตนเลส เกรด 316 สำหรับยึดแผ่นตะแกรงกับโครงสร้างอย่างมีประสิทธิภาพ โดยทั่วไปจะต้องยึดทุกด้าน เช่นกรณีเป็นรูปสามเหลี่ยม ก็ต้องยึดทั้งสามจุด หรือกรณีเป็นสี่เหลี่ยมก็ต้องยึดทั้ง 4 จุดเพื่อป้องกันการหลุดเคลื่อนตัวของแผ่นตะแกรงเมื่อใช้ไปนานๆ หรือคำนวณการใช้ตัวคลิปล็อค 1 ชุดต่อ 1 ตารางเมตร

#Grating Manhole Cover Expert Specialist GFRP Composite Steel Gully Scupper Driveway Grating Grilles, Culvert Conduit Trench Drainage Ditch, Cast Ductile Iron Manhole Grid Covers Catch Basins, Raised Access Floor Walkway Pavement, Bar Grate Mounting Saddle Clip Lock Clamp Fastenal Anchor Fastener ตัวล็อคเหล็กยึดแผงตะแกรง, Formworks Tied Rod ThreadBar WaterStopper Anchorage WingNut, ฝาท่อระบายน้ำเหล็กหล่อเหนียว, , ฝาท่อไฟเบอร์ผสมเรซิ่น, ฝาเปิดปิดถังแมนโฮล แฮนโฮล, ฝาปิดครอบท่อบ่อพักกรองเกรอะ, ฝาปิดท่อระบายน้ำเสีย น้ำดี, แผ่นปูร่องน้ำ ฝาปิดท่อทรงกลม-สี่เหลี่ยม, ฝาปิดคอนกรีตปูนซีเมนต์เสริมเหล็ก, ฝาปิดงานระบบบำบัดรวบรวมน้ำเสียทิ้งชนิดสั่งตัดได้ทันที; เกรตติ้ง, เกรทติ้ง, ฝาตะแกรงเหล็กแผ่นเชื่อมสำเร็จรูป, กรอบตะแกรงปกป้องรอบโคนต้นไม้, แผ่นปิดจมูกขอบมุมคิ้วแผงครอบบันไดกันลื่น Perforated Pegboard Hook Shelves Racking Storage Tools DIY Kit แผ่นกระดานเพ็กบอร์ดแผงเหล็กเจาะรูติดผนังกำแพงแขวนเก็บอุปกรณ์เครื่องมือช่าง, #โรงงานผลิตจำหน่ายPegboard Tools Holder Rack Hard Board Store Organizing Display กระดานบอร์ดแผ่นอลูมิเนียมเหล็กไม้ เจาะรูยึดติดผนังตกแต่งบ้านห้องครัว, #แผ่นกระดานไม้เหล็กแผ่นพับขึ้นรูปเจาะรู อุปกรณ์ที่ใช้กับชั้นวางเหล็ก Trench basin scupper Dust screen driveway side drainage grating traffic road highway, Leaf trapper safe scupper drainage traffic grates along side of highway, storm curb with inlet grating and drain box ฝายตะแกรงหวีดักแยกเศษขยะลอยใส่ช่องระบายน้ำตรงขอบฟุตบาท ดักฝุ่นผงตะกอนขยะ เศษอาหาร ใบไม้ กระดาษ คันหินกล่องช่องตะแกรงรับน้ำคสล. แบบเต็มครึ่งท่อนหัวมนเทเปอร์ รางยูด้านข้างริมฟุตบาท, สเปคตามมาตรฐานของเทศบาล กรมโยธาธิการและผังเมือง กรมทางหลวงชนบท การเคหะแห่งชาติ การทางพิเศษแห่งประเทศไทย ผู้เชี่ยวชาญแผ่นพลาสติกระบายน้ำล้นรอบสระว่ายน้ำ รองพื้นปูร่องน้ำทดแทนเหล็ก, PP PVC PE ABS Swimming Plastic Grating, แผงกั้นกระจกหน้ากากร้าน ตึก อาคาร, หุ้มผนังภายนอก, แผ่นปูพื้นทางเดิน ไหล่ทางเท้า,ปูรองรับสินค้าจากสายพานลำเลียง, ยกระดับพื้นบ้านและสวน เขตอนามัยกันไฟฟ้าสนามเวทีแสดงประกวด, บล็อกปลูกหญ้า ลวดชุบพลาสติก ลายหลากหลายให้เลือก สามารถนำไปตัดและตกแต่งเพิ่่มเติมเป็นเฟอร์นิเจอร์ลายฉลุ ผนังลายฉลุ ใช้ตกแต่งประกอบสถานที่ต่างๆสวยงามและเป็นเอกลักษณ์
อลูมิเนียมคอมโพสิทสิต, เอฟอาร์พี, ทนสึกกร่อน สนิม ความร้อน ไฟ กรด ด่าง เคมี, ประหยัดพลังงาน ไม่บวมน้ำ ปราศจากสารพิษ ไม่ลามไฟ, ไฟเบอร์กลาสหรือใยแก้วชนิดพิเศษคืออะไร, Pantip Siam Steel, Fibergrate Strongwell Webforge Hilti, knack mch dos, SCG HOmepro Depot ไทวัสดุ, งานซ่อมแซมพื้น, วัสดุเคลือบพื้นผิว, อีพ็อกซี่, อีพ๊อคซี่, อีพ็อคซี่, พื้นอีพ๊อกซี่,โพลียูรีเทน, พีวีซี กาว,ไบโอ Bio, PE PU concrete, coating, stone hard, ปรับปรุงพื้นโรงงานอุตสาหกรรม, ครัว โรงแรม, เคลือบบ่อทนสารเคมี, อะครีลิค, ซ่อมรอยแตกร้าวรั่วซึม, โค้ทติ้ง, กันซึมดาดฟ้า, บ่อเก็บสารเคมี, รางน้ำไฟเบอร์กล๊าส, หลังคาเมทัลชีท, วัสดุทดแทนเหล็ก, ไม้เทียมสังเคราะห์, ชีวภาพ, รีไซเคิล, อุปกรณ์, ฟลอรูฟเดรน, พื้นกันสึก กันกระแทก, รางน้ำล้นรอบขอบสระว่ายน้ำ, แผ่นเรียบบานเกล็ด, แผ่นพื้นยางปูพื้นรอบแท่นเครื่องจักร, พาเลท ถาดรอง ชั้นวาง, พื้นโรงเรือน บล็อกตัวหนอน บล็อคปูถนน ตกแต่งพื้นสนามหญ้า, ทางเดิน แท่งรางตัวยู ระบายน้ำทิ้ง ริมขอบฟุตบาท, วายเมท, วาย ไวร์เมช, พร้อมเฟรมช่องระบายน้ำ, ลวดเหล็กฉีก พับฉลุเจาะรู, เหล็กยืดคาร์บอนไฟเบอร์, ลายตีนเป็ด ไก่, รางระบายน้ำฝน, ขั้นบันไดกันลื่น, ราวกันตก, มินิตะข่ายกันกลิ่น, บล๊อคปูถนนภายนอก, ตกแต่งบ่อปลาคราฟ, ภูมิทัศน์, กระเบื้อง, ปูพื้นเครื่องจักรยกระดับ, ปรับเปลี่ยนฮวงจุ้ย , DIY ติดตั้งง่ายด้วยตัวเอง, ซื้อที่ใหน ราคาเท่าไร Ventilation grilles suspended ceiling textures, Splashboard/ Weatherboard/ Slat blinds/ Trellis shade, Awning Wall Panels, Colorful General Sun Screen Partition, Anti-Bird Control Netting, Mini decorative Grating Curtains, Sculpture grid cover opened cell ceiling Application: office places, meeting room, supermarket, school, corridor, toilet bath room, hospital, re-decoration works, ฉากแผ่นฝ้าเพดานผนังม่าน รั้วราวแผงกั้นพาร์ทิชั่น หลังคากันสาดระแนงบังตาตะข่าย บานพับเฟี้ยมซุ้มไม้เลื้อยกำแพง, แผงระแนงด้านนอกบังตาหน้ากากตึกตะแกรงกั้นช่องแสงบังไฟ, โคมติดลอยตะแกรงฝังฝ้าทีบาร์, แผ่นฝ้าเพดานแบบเกี่ยวแขวน, ฉากฝาผนังเบา ม่านโปร่งทึบแสง ตกแต่งเอนกประสงค์ กันสาดบังตา ระแนงบานพับเฟี๋ยมซุ้มไม้เลื้อยรับลม, ตาข่ายป้องกันคลุมนก, แผ่นกั้นขับไล่นกงูกระรอก, แผงแบ่งกั้นสั่งประกอบ ดีไลท์,โพลีคาร์บอเนต ไวนิล, กั้นออฟฟิศสำนักงาน ห้องน้ำ, ระเบียง หน้าบันได แผ่นลายฉลุหลายขนาด ฝ้าตกแต่งปิดงานระบบแอร์ สายไฟ, กั้นห้อง, คุณภาพสูงเกรดเอ ดีไซด์สวยหรูคู่อาคาร

Our molded fiberglass grating and pultruded fiberglass grating provide unmatched corrosion resistance properties, especially when compared to steel flooring products. Strength, long life and safety are also superior qualities of our fiberglass grating products, and their electrically non-conductive properties make them the ideal option for floor grating. We offer many types of fiberglass grating for all your different loading applications. Fiberglass grating applications range from architectural sun screening and fiberglass flooring to standard walkways and high load rolling applications. Grit surfaces and standard stock colors or custom colors are provided to suit your fiberglass application. Choose from our custom resin types for a fiberglass flooring product that is tailored to suit your corrosion resistance needs.
Molded fiberglass grating is a fiberglass-reinforced plastic (FRP) that combines fiberglass rovings with thermosetting resins to form a strong, one-piece molded panel. A 65%/35% resin to glass weight ratio provides high corrosion resistance. Meniscus surfaces or applied grit surfaces provide slip resistance when compared to steel flooring and other flooring products. This fiberglass grating product is better suited for corrosive environments. Pultruded Pultruded Fiberglass Grating
Pultruded fiberglass grating is made using premium grade isophthalic polyester, vinyl ester or phenolic resin systems with a synthetic surfacing veil, making it corrosion resistant, lightweight and durable. Pultruded fiberglass has a grit surface for safety and a greater strength to weight ratio than molded fiberglass grating. A 35%/65% resin to glass ratio provides greater strength and less corrosion resistance than molded fiberglass grating. This product is better suited for longer spans of fiberglass flooring.
Fiberglass Covered Grating Our fiberglass covered grating is a long-lasting, molded fiberglass flooring product that combines smooth, gritted or checker plate and molded grating manufactured with any of our resin systems. It is the ideal choice when floor grating needs to be 100% covered. Our fiberglass covered grating is often used in loading and storage areas with high foot and cart traffic, where a strong, level surface is ideal. It offers approximately 50% higher stiffness values than that of open mesh grating and its standard grit-top cover assures secure footing.
Bullet Resistant Fiberglass Plate Our bullet resistant fiberglass plate offers superior ballistic resistance at a weight less than 25% that of a comparable steel panel. Now available for commercial security fiberglass applications for your business, home or governmental facility, these fiberglass panels offer ballistic resistant security with the additional performance advantages of durability, corrosion resistance, electrical non-conductivity, low thermal conductivity and light weight.
Heavy Duty Fiberglass Grating Our heavy duty fiberglass grating is available in both molded and pultruded grating systems. Both types of heavy duty fiberglass grating are designed to carry forklift and tractor-trailer loads that traditional molded and pultruded FRP grating products are not designed to support. Heavy duty fiberglass grating provides greater durability for higher volume traffic areas as well. Additionally, Heavy Duty Fiberglass Grating can be used to free span longer distances than traditional fiberglass grating.
Fiberglass Stair Treads and Fiberglass Stair Tread Covers Lightweight and easy to install, fiberglass stair treads are available in both molded and pultruded types to match the fiberglass floor grating platforms. Fiberglass stair tread covers are made from a molded glass and resin system that is corrosion and impact resistant, fire retardant and non-conductive. They provide a cost effective, slip-resistant protective surface for concrete, metal and wood steps.
Fiberglass Grating Handrails and Fiberglass Ladders Fiberglass Grating Handrails and Fiberglass Ladders Fiberglass handrail systems are fabricated from pultruded fiberglass components and molded thermoplastic connectors. Our modular fiberglass grating handrail systems are available in 2-inch square or 2-inch round configurations that are easy to grip, making them ideal for any high traffic area. Our fiberglass ladders and cages can be installed in a variety of applications from sump pumps to tanks, buildings, piers, portable equipment, etc., providing years of strength and dependability.
Fiberglass Attachments and Fiberglass Clips Our fiberglass grating attachments and clips are specially designed to secure fiberglass grating or plates to the supporting structures. Additionally, they are used to fasten together adjacent grating panels, which minimizes load-induced differential deflection. All fiberglass attachments and clips are made of Type 316 stainless steel and are available in 1-, 1-1/2- and 2-inch sizes.
Fiberglass plates feature a non-conductive surface that makes them an economical and safe solution to walking surfaces. In caustic and/or acidic conditions, fiberglass plates provide a level of corrosion resistance that is unequaled and more cost effective than stainless steel. Fiberglass plate is available with a non-grit surface or with a grit surface where anti-slip traction is needed.
Fiberglass Structural Shapes Our fiberglass structural shapes and pultruded fiberglass profiles are made from a combination of fiberglass and thermosetting resin systems. All shapes are lightweight, impact resistant, low maintenance, non-magnetic, low conductive and have dimensional stability, making them easy to install and ideal for several applications. Custom shapes are available upon request.

Composite (GFRP) Gratings : What is GFRP (Glass Fiber Reinforced Plastic)?
GFRP is a composite material made of a polymer matrix reinforced with fiber, aiming to form better physical and chemical properties. GFRP is a production material such as metal, wood, glass, concrete. GFRP materials has important advantages as against other production materials, new features can be acquired according to requirements. What is GFRP Grating? Molded GFRP gratings are produced in special molds with wet lamination process, consist of glass fiber, resin, additives and pigment. After these raw materials harden, GFRP gratings are pressed out of the mold. Molded GFRP gratings are light, anti-corrosive, have high chemical and physical resistances and electrically non-conductive. Components: Resin, glass fiber, additives and pigment are the basic components of the GFRP materials. It can be produced any material which are proper for the requirements by changing these components. Resin: Chemical resistance, flexibility and UV resistance of the GFRP gratings are determined by the resin. Resins are chose according to the environment; orthophthalic resin for general usage, isophthalic resin for chemical environment and vinyl ester resin for extremely heavy chemical environment. Glass Fiber: Multi-layered continuous glass fibers are used in production. Molded GFRP gratings have high mechanical resistance due to glass fiber. Additives: Additives such as UV stabilizers, flame retardants and low smoke density retardants increase mechanical and chemical resistance and add new superior features. Pigment: Pigments make it possible to give the GFRP gratings any color. This makes it happen to use GFRP gratings in architectural projects.

Molded Grating Pedestals Fibergrate Adjustable Grating Pedestals are high quality components designed to support elevated grating applications. Infinitely adjustable within their specified range, standard pedestals raise grating platforms and custom pedestals with cross bracing can raise floors above the base elevation. Pedestals are available for 1″, 1-1/2″ and 2″ deep square mesh Fibergrate or Chemgrate molded fiberglass gratings. Pedestal heads are stocked in “single head” and “quad head” designs facilitating quick, safe and economical installation of elevated platforms. • ADJUSTABLE – Create level walking surfaces on sloping floors • VERSATILE – Available for all Fibergrate and Chemgrate square mesh gratings • COST EFFECTIVE – Low installation cost, easily relocated to other areas • LIGHTWEIGHT – Modular, adjustable components are lightweight and reduce lifting • CORROSION RESISTANT – Thermoplastic polyester and pultruded vinyl ester are resistant to most industrial wet-floor applications

Grating Pedestal Supports
Fibreglass Grating ? Grating Pedestal Supports From time to time, FRP grating will need to be supported in walkway areas where using traditional support and framing methods either cannot be used or are unsuitable to the working environment. Areas, such as, Chemical bunds, Raised floor platforms & work stations, Chemical Treatment Dosing Plant Rooms, Raised non slip walkway access across drainage floors and work spaces, Suspended floor grating, cable ladder runs, concealing pipe work and electrical services underneath, Areas required to be non conductive. our FRPP pedestal supports that can raise our FRP floor grating, and link into the mesh pattern of our grating. The panels of our grating can be joined, on the one pedestal eliminating multiple pedestals in the same area. The wide based pedestals can be fixed to the floor if required, and also to the top of our grating, using our 316 s/s hold down clips to suit. This provides an extremely solid base, which can take high loads. Available in a range of heights, and completely adjustable to accommodate uneven floors, we can supply a pedestal to suit your application.

FRP Stair Solutions – Stair Treads
Fiberglass stair treads and stair covers are an essential complement to molded and pultruded grating installations. These corrosion and slip resistant treads are manufactured with a defined visible nosing and provide safe footing in the most challenging environments. Stair treads and covers can be supplied cut to precise customer specified sizes or in stock panels that are easily field fabricated.
stair tread covers are a convenient way to provide solid slip-resistant footing for existing treads that are still structurally sound. Stair tread covers may be installed over wood, concrete or metal treads. Standard industrial color is dark gray with a highly visible safety yellow nosing and light gray for architectural applications. An integral aluminum oxide grit-top surface provides secure footing for maximum safety and a highly durable tread. Reinforced with a woven glass mat for durability and impact resistance, these tread covers come in made to order widths. The standard thickness is various thick covers available for heavy duty applications. Standard long panels are easily cut to size during installation, or are available precut to custom lengths.
Phosphorescent Nosing :Fiber plate stair tread covers can be ordered with a special phosphorescent coating for the nosing area, causing it to glow even after the primary light source has been removed. The special nosing is perfect in stairways which serve as emergency exits during power outages, outdoor accessways where lighting is periodically dimmed as in arenas and concert halls or as a safety measure for nighttime operation in outdoor applications such as on passenger ships. This special nosing has been tested in accordance with ISO/TC Ships and Marine Technology – Low Location Lighting on Passenger Ships.

Fibreglass Grating > FRP Tread Covers > Tread Grip
Some superior features of TreadGrip are. Durability: TreadGrip is a high quality composite of glass woven matting impregnated with isophthalic polyester resin. The energy absorption and flexibility of TreadGrip. ensures its long life, even in the busiest of environments. Slip Resistant: A compound of carbon and silicon grit is added in the final layer of laminate providing a superb slip resistant and hard wearing surface. Corrosion Resistant: TreadGrip is resistant to a wide range of chemicals and is perfectly suited for use even in the harshest of environments. Chemical resistance guides available on request. Simple to install: The versatility of TreadGrip. allows it to be applied to almost any surface such as concrete, steel or wood. The fact that it is supplied as a finished product means that it can be walked on straight away thus keeping disruption to a minimum.
supply FRP stair treads in both molded and pultruded grating profiles. Available in isopthalic, vinyl ester and phenolic fire retardant resin systems, to suit both industrial and domestic applications. Molded FRP stair treads come with a contrast nose edge as required by the Australian Standards for stairways to have a contrasting front edge (nosing) colour for ascending and descending stairs resulting in a safer stairway. Generally our stair treads colours are: Grey with yellow nosing. Other colours are available should you wish to match up with aesthetics and / or the environment. Available in our standard tread panels or we can cut to size, we welcome your enquiry. Our standard treads have an anti slip grit top surface, but we can also supply treads with a concave top which is also anti slip, but easy to clean, for example, for the food and beverage industry. Our treads are secured to the angle supports underneath using our 316 s/s Type M hold down clips – you can see those in the molded grating index on the “Installation Accessories” page.
If you own a building, run a business or manage a public space that has stairs then you are obliged to ensure that everyone using the stairs is safe. Anti Slip Stair Nosing is an excellent way to ensure that the stairs are as safe as possible. Anti Slip Stair Nosing can reduce the chances of accidents occurring dramatically. The leading edge of a stair can become slippery when wet and even internal stairs can become slippery during rain as people track the water inside. With high quality Edge Grip FRP Anti Slip Stair Nosing from Monaco you can make sure that the leading edge of the stairs are not slippery even in the wettest conditions. These anti slip stair nosings can be fitted in many different situations, including the following, public spaces, commercial areas and industries: Railway stations , Public squares and parks, Milking sheds,Industrial tank stairs,Industrial and commercial sites,Schools,Ski fields,Fire escapes, Oil rigs Ports Our Edge Grip FRP Anti Slip Stair Nosing comes in pre-formed robust fibreglass panels that are incredibly durable and the silicone carbon grit top finish provides a highly slip resistant surface. We offer two slip resistant surfaces, one light grit made for interior situations and the other heavier grit made for exterior uses. Edge Grip FRP Anti Slip Stair Nosing has a patented featheredge meaning that it can be fitted to virtually every type of step without creating a trip hazard making it the safest all-round Anti Slip Stair Nosing.

CHANCON Interesting Products Catalogue
แนะนำแค๊ตตาล็อคสินค้าของบริษัทแชนคอน
#แชนคอน ศูนย์รวมตะแกรงระบายน้ำสำเร็จรูป มีหลากหลายวัสดุและแบบ ให้เลือกมากที่สุดในโลก     Word Class Quality #Manhole Cover #Overflow Grating Specialist

1-6 Gully Grating: กลุ่มสินค้า ตะแกรงทางเดินระบายน้ำ ดักขยะในคันหินข้างฟุตบาท โคนต้นไม้



7-9 Manhole Cover: กลุ่มสินค้า ฝาปิดบ่อพัก ฝาท่อ เหล็กหล่อเหนียว ไฟเบอร์กล๊าสผสมเรซิ่น


10-15 Related Grating: กลุ่มสินค้าตะแกรงตกแต่ง ตัวคลิปล็อคอุปกรณ์ยึดจับตะแกรงเหล็ก


 … GratingThai Products Brochure Download …

Project reference ตัวอย่างลูกค้า การประยุกต์ใช้
วิธีการเลือกซื้อ ตะแกรงพลาสติคPP ตะแกรงเหล็กเชื่อมชุบกัลวาไนซ์สำเร็จรูป เกรตติ้งไฟเบอร์กล๊าส ฝาบ่อฝาท่อปิดบ่อพักระบายน้ำ กระดานเพ็กบอร์ด ตะขอขาแขวนฮุค แผ่นปิดจมูกบันไดกันลื่นเรืองแสง แผ่นกันลื่นบันไดไฟเบอร์กล๊าสสะท้อนแสง

Swimming Pool Overflow Spa Plastic Grating, เกรตติ้งพลาสติกระบายน้ำล้นรอบขอบสระว่ายน้ำสำเร็จรูป |ตะแกรงเหล็กแผ่นเชื่อมสำเร็จรูปชุบจุ่มร้อนกันสนิม, Galvanized Welded Bar Carbon Steel Grating | ตะแกรงเกรตติ้งระบายน้ำไฟเบอร์กล๊าส, Fibreglass GFRP Overflow Swimming pool Grating | Scupper Curbed Drainage Grates,ตะแกรงดักขยะฝุ่นผงคันหินใบไม้ด้านข้างริมฟุตบาท | ฝาปิดบ่อท่อพักระบายน้ำเหล็กหล่อเหนียว, Ductile Iron Sewer Manhole Cover | ฝาปิดบ่อท่อพักไฟเบอร์กล๊าส, FRP Fiberglass Manhole COVER, แผ่นปูพื้นยกระดับ Raised Floor | EggCrate, Facade Cladding ,แผงระแนงบังตา หน้ากากตึก | Pegboard , Hooks Accessories ,เพ็กบอร์ด, แผ่นเหล็กเจาะรูแขวนเครื่องมือ ,ฮุกตะขอลวดขาแขวนเพ็คบอร์ด | Anti Slip GFRP Stair Tread Nosing Step Covers, Non-Skid Outdoor Plate Sheeting, แผ่นปิดจมูกขอบมุมคิ้วแผงครอบบันได ,แผ่นปูพื้นปิดผิวกันลื่นไฟเบอร์กล๊าส | Saddle Clip Clamp Lock Grating, Fastenal Fastener Lock Bar Steel Grating ,อุปกรณ์ตัวคลิปล็อคยึดจับแผ่นตะแกรง

Home Page of CHANCON (Products Menu)
เมนูหน้าแรก บริษัทแชนคอน – บริษัทเกรตติงไทย

    GFRP-Steel-Plastic-PPABS Swimming Overflow Welded Steel Bar GRATING / Composite FibreGlass Casting Ductile Iron MANHOLE COVER ฝาบ่อทึบปิดท่อพักครอบท่อรางระบายน้ำทิ้งสำเร็จรูป ฝาท่อ แมนโฮล เกรตติ้ง / Anchoring Devices attached Saddle Fixing Clip Clamp Lock Fastenal Fastener Bar Steel Grating / Curbed Drainage Grating Scupper / Stair Tread Nosing / Perforated Pegboard Hook Shelves Racking Storage Tools DIY Kit : ตะแกรงไฟเบอร์กล๊าสพลาสติกระบายน้ำล้นรอบขอบสระว่ายน้ำ เกรตติ้งเหล็กชุบสังกะสีทนสนิม ตะแกรงดักเศษอาหารขยะฝังในคันหินคสล. ฝาทึบปิดบ่อครอบท่อพักไฟเบอร์กล๊าสเหล็กหล่อเหนียว แผ่นปูพื้นทางเดินยกระดับ อุปกรณ์ตะขอขาแขวนฮุกแผ่นกระดานเพกบอร์ดแผงเหล็กเจาะรูติดผนังกำแพงแขวนเก็บอุปกรณ์เครื่องมือช่าง

Contact & Enquiry ติดต่อสั่งซื้อ แผนที่ ราคาส่วนลด
    A. Contact us : ช่องทางติดต่อสั่งซื้อ แผนที่รับสินค้า บัญชีธนาคาร เงื่อนไขการจัดส่ง
    B. Price-Quotation : เช็คราคาสินค้า ขอใบเสนอราคา ส่วนลดพิเศษ
    C. Projects Reference : ตัวอย่างลูกค้า การประยุกต์ใช้ วิธีการเลือกซื้อ
    D. Specification and Services : ความหมาย การสั่งผลิต ติดตั้ง ออกแบบ ผลทดสอบการรับแรง-สารเคมี
    E. About Us (Grating Expert) : Grating Thai | Chancon Group of Company (บริษัท แชนคอน)
    F. Dealer Sales Wanted : ขอเป็นตัวแทนจำหน่าย รับสมัครพนักงานขาย
    G. Shopping Site Map : ราคาสินค้าทั้งหมดของ ตะแกรงระบายน้ำ ฝาปิดบ่อครอบท่อพัก

Overflow Grating ตะแกรงระบายน้ำล้น เกรตติ้งทางเดิน
    1. Plastic PolyPropylene Grating ตะแกรงทางเดินระบายน้ำ พลาสติกชนิดเหนียวแข็งแรงพิเศษ PP
    2. Galvanised Steel Grating ตะแกรงเหล็กแผ่นเชื่อมสำเร็จรูปชุบกันสนิม สำหรับรางระบายน้ำ ทางเดิน
    3. FRP FiberGlass Mould Grating ตะแกรงระบายน้ำไฟเบอร์กล๊าส แผ่นปูพื้นทางเดินในโรงงาน
    4. ABS Swimming Overflow Drainage Grating แผ่นตะแกรงระบายน้ำล้นรอบขอบสระว่ายน้ำ
    5. Drive HighWay Leaf Side Drain Grating ตะแกรงดักขยะฝุ่นผงคันหินใบไม้ด้านข้างริมฟุตบาท
    6. Tree Guard Grating Paver Frame Cover กรอบตะแกรงปกป้องรอบโคนต้นไม้ สำเร็จรูป

Manhole Cover ฝาบ่อแมนโฮลปิดครอบท่อพักระบายน้ำ
    7. FRP Manhole Cover ฝาปิดบ่อพัก ฝาท่อไฟเบอร์กล๊าสผสมเรซิ่น (ไม่เป็นสนิม ทดแทนแสตนเลส)
    8. Ductile Cast Iron Manhole Cover (Round/Square) ฝาปิดท่อ ฝาบ่อพักเหล็กหล่อเหนียวบำบัดน้ำ
    9. FRP Diamond Top Cover (Special Cut) ฝาปิดบ่อครอบท่อพักไฟเบอร์กล๊าสชนิดสั่งตัดตามขนาด

Grating Equipment เพ็กบอร์ด ฮุค คลิปล็อค แผ่นปิดผิวกันลื่น
  10. Egg Crate Ceiling Screen แผงระแนงบังตาหน้ากากตะแกรงกั้นช่องแสงบังไฟ กรองลมระบายอากาศ
  11. Ceiling Trellis Shade Grilles ฉากแผ่นฝ้าเพดานผนังม่าน รั้วราวแผงกั้นพาร์ทิชั่น กันสาดระแนงบังตา
  12. PegBoard Display Tools Hooks Shelves Perforated Racking แผ่นกระดานเพ็กบอร์ดเจาะรูติดผนังแขวนเก็บอุปกรณ์เครื่องมือช่าง ตะขอขาแขวนฮุก
  13. FRP Stair Tread Nosing Step Cover Protector แผ่นปิดจมูกขอบมุมคิ้วแผงครอบบันไดกันลื่นไฟเบอร์กล๊าส แผ่นปิดพื้นผิวกันลื่น ทดแทนเทปกันลื่น เทปตีเส้นเรืองแสง
  14. HDG Steel Grating clip lock clamp fastener คลิปล็อคยึดจับแผงตะแกรง แสตนเลส/เหล็กทนสนิม
  15. FormWork Ties System: TieRod/ThreadBar เหล็กรับแรงทนดึงสูง WingNut WaterStopper

CONTACT US : CHANCON GRATINGTHAI
ติดต่อ บจก.แชนคอน – บจก.เกรตติงไทย

แชนคอน ผู้ผลิตที่เชี่ยวชาญโดยเฉพาะด้าน ระบบงานฝาตะแกรงระบายน้ำสำเร็จรูป แผ่นปูพื้นทางเดิน แผ่นพื้นยกระดับ ตะแกรงดักขยะข้างฟุตบาท ตะแกรงขั้นบันได แผ่นพื้นยกระดับน้ำหนักเบา ฝาบ่อชำระล้าง ฝาท่อปิดบ่อพัก แผ่นพื้นในลานผลิตเอนกประสงค์ แผ่นรองปูรอบเครื่องจักรกันลื่น แผ่นทางเดินด้านบนระบบบำบัดน้ำเสีย แผ่นกันลื่นขั้นบันไดเหล็กในโรงงาน กระดานเพ็กบอร์ดแขวนเครื่องมือ PegBoard Hooks ทนทานต่อการสึกกร่อนจากทั้งน้ำเค็ม ฝนกรด ปัญหาสนิมและสารเคมี



Grating_Manhole_Expert | โรงงานผู้ผลิต ขายส่ง-ปลีก | รับสมัคร ตัวแทนจำหน่าย Sales, Dealer, Agent, Distributor || บริษัทแชนคอน โรงงานผู้ผลิตและจำหน่าย FRP Grating ตะแกรงรางระบายน้ำ ตะแกรงทางเดิน ฝาปิดบ่อครอบท่อพักระบบบำบัดน้ำเสีย

CHANCON Co., Ltd. | GratingThai Co., Ltd. ||  (Head office ตรงข้ามเซ็นทรัลพระราม2) เลขที่ 199 ซอยท่าข้าม21/1 แสมดำ บางขุนเทียน กรุงเทพมหานคร ประเทศไทย | 199 Takham21/1 Takham Road, Bangkhuntien Bangkok Thailand 10150 Mobile Phone(Sales): 081 932 7894, 061 647 0184-6     Tel: 02 451 0780-1, Fax: 02 451 0786
E-mail: mkt@chancon.co.th   |     Line@: @iCHANCON

Website: http://www.CHANCON.co.th   |   www.GratingThai.co.th | http://GRATINGTHAI.com |
http://www.ตะแกรงไฟเบอร์กลาส-ฝาบ่อเหล็กฝาท่อ.com | www.KanokMat.com | www.PongSa.com

FaceBook: https://www.facebook.com/weChancoN
Youtube: http://www.youtube.com/mktchancon
Twitter: http://twitter.com/fibergrating
Google Plus: https://plus.google.com/+ChanconTh
Pinterest: https://www.pinterest.com/FRPSteelGratingManholecover/boards/
Instagram: https://www.instagram.com/fibermanhole_gratingthai/
BlogSpot: http://chanconfrpgrating.blogspot.com/

ប្លុកអគារគ្របដណ្តប់លើអាគារ។ ដែកសន្លឹក perforated grooving ពាក់អគារតុបតែងពីមុខ | ភាគថាសជញ្ជាំង | រំកិលផលិតផលទ្វារ | បង្អួច | ពិដាន perforated | STEEL ជម្នះរបស់ | ច្រករបៀងម្លប់ | អាលុយមីញ៉ូមសមាសភាព | ខ្យល់, ដុតព្យួរវាយនភាពអំពូល, Splashboard / Weatherboard / slats លារ / ការស្រមោល trellis តុសសកុដិគណៈកម្មាបន្ទះជញ្ជាំង, ចម្រុះនេះ។ ភាគថាសអេក្រង់ទូទៅបណ្តាញប្រឆាំងប្រឆាំងនឹងបក្សី, វាំងននតុបតែងលំអខ្នាតតូច, គម្របក្រឡាចត្រង្គរូបចម្លាក់, កម្មវិធីទូរស័ព្ទដៃបើក: កន្លែងការិយាល័យ, បន្ទប់ប្រជុំ, ផ្សារទំនើប, គម្របមនុស្សយន្ត ពាក្យសុំ របៀបទិញ។ ដឹងគុណជាតិសរសៃ។ គំរបស្រះ, គម្របបំពង់, ធុងបង្ហូរទឹក។

ជ័រផ្សេងគ្នា FRP Fiberglass សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។

ប្រភេទអេកូថ្នាក់ទី (អាចដំណើរការបានពី -៥០ ដល់ ៦០ អង្សាសេ)
សេអ៊ីដប៉ូតាលីលីកខនធ័រដាប់ធ័រសេដ្ឋកិច្ចភាពធន់នឹងការស៊ីភ្លើងតិចនិងភ្លើងឆេះអត្រារាលដាលអណ្តាតភ្លើង។ ការដឹងគុណបែបនេះអាចត្រូវបានប្រើនៅក្នុងប្រព័ន្ធទឹកខ្សោយនិងទឹកសំណល់។ ប្រតិបត្តិការនេះអាចមានពី -៥០ ទៅ ៦០ អង្សាសេជាមួយនឹងបន្ទុកការងារធម្មតា។ ការរាលដាលអណ្តាតភ្លើងៈអត្រា ASTM E84 មាន ២៥ រឺតិចជាង
២ ប្រភេទអាហារថ្នាក់ទី (អាចធ្វើការបាន -៥០ ដល់ ៩០ អង្សាសេ) ។
ប្រភេទអាហារ isophthalic ប្រភេទនេះលាយជាមួយជ័រប្លាស្ទិចដែលផ្តល់នូវសារធាតុប្រឆាំងនឹងមេរោគចាំបាច់ដើម្បីទប់ស្កាត់ការលូតលាស់ ភាពធន់នឹងច្រែះថ្នាក់ឧស្សាហកម្មនិងភ្លើងឆេះ, អត្រារាលដាលអណ្តាតភ្លើង។ ការដឹងគុណបែបនេះអាចត្រូវបានប្រើនៅក្នុងការផ្តោតអារម្មណ៍ពិសេសនៃអាស៊ីតសរីរាង្គអាល់កាលីកជាដើមប្រតិបត្តិការអាចមានពី -៥០ ទៅ ៩០ អង្សាសេជាមួយនឹងបន្ទុកការងារធម្មតា។
ប្រភេទថ្នាក់ទីខ្ពស់ (អាចធ្វើការក្នុង -៥០ ដល់ ១១០ អង្សាសេ)
ភាពធន់ទ្រាំនឹងជ័រអេសស្ទីនដែលមានសមត្ថភាពខ្ពស់និងការពន្លត់អគ្គីភ័យអត្រារាលដាលអណ្តាតភ្លើង។ វាផ្តល់នូវភាពធន់ទ្រាំខ្ពស់ចំពោះកម្រិតអាស៊ីត។ ការដឹងគុណបែបនេះអាចត្រូវបានប្រើនៅក្នុងបរិយាកាសពិសេស។ ប្រតិបត្តិការអាចមានពី -៥០ ទៅ ១១០ អង្សាសេជាមួយនឹងបន្ទុកការងារធម្មតា។

វិធីអនុញ្ញាតិឱ្យមានទទឹងដែកថែបមុំស្មាក្រឡាចត្រង្គ
រចនាចន្លោះរវាងជីងនិងលីនមុំ។

របៀបតំឡើងលូបង្ហូរសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។ គួរតែត្រូវបានរចនាឡើងដើម្បីរៀបចំទទឹងស្មានិងកំពស់ឱ្យសមនឹងសំណាញ់។ សម្រាប់ភាពខ្លាំងនិងសុវត្ថិភាពនៃការប្រើប្រាស់។ ការដំឡើងបណ្តាញបង្ហូរទឹកត្រូវតែត្រូវបានរចនាឡើងដើម្បីរៀបចំស្មាឱ្យធំទូលាយនិងខ្ពស់សមនឹងចានក្រឡាចត្រង្គបង្ហូរ។ តាមស្តង់ដារទូទៅ។ ដែកថែបនិងប្លាស្ទិកមានទំហំ ២ ទទឹង ២៥ ស។ មនិង ៣០ ស។ មដូច្នេះស្មាដែលត្រូវទទួលដែកគោល (រាងអក្សរអិល) ត្រូវតែប្រើដើម្បីដាក់ដែកមុនចាក់បេតុង។ ដោយមានកម្ពស់ ២៥-៣០ ម។ ម (អាស្រ័យលើប្រភេទស៊ីន) ដើម្បីរក្សាស៊ីណាដែលតែងតែដាក់នៅលើឥដ្ឋ។ មិនជំពប់ដួលលើរទេះរុញរឺដើរឆ្លងកាត់។ ទទឹងស្មាគួរតែត្រូវបានវាស់នៅពេលវាស់ពី ៥-១០ ម។ ម
ទទឹងស្មា គួរតែត្រូវបានផ្តល់ទៅ ចានដែល ដឹងគុណ
។ ត្រូវដាក់បន្ថែម ៣-៥ មមនៅផ្នែកម្ខាងៗសរុប ២ ភាគីគឺ ៦-១០ ម។ ម
.- លេខ ១ ក្នុងករណីប្រើ ស៊្រី ទទឹង ២៥ ស ។ ម ត្រូវរៀបចំស្មាសម្រាប់ប្រាក់ឧបត្ថម្ភ =២៥.៥-២៦.០ ស។ ម។
Ex-2 ក្នុងករណីប្រើទទឹង ស្រោប ៣០ ស។ ម។ ត្រូវត្រៀមស្មាបម្រុងទុក = ៣០.៥-៣១.០ ស។ ម។ រូបភាពបង្ហាញពីរបៀបតំឡើង ដែកកេះ កន្លែងកើតហេតុ។ គាំទ្រដល់បំពង់បង្ហូរទឹកដែល ជាកម្ពស់ នៃដែកមុំខាងស្តាំ។ ដូច្នេះការដឹងគុណមិនទាបឬខ្ពស់ជាងកម្រិតដីទេ។ គ្មានការជំពប់ជើងនិងការរំខាន។ ប្រើស៊ុមដែកដើម្បីទ្រទ្រង់។ ដាក់មុនពេលចាក់បេតុង។ ដើម្បីឱ្យសមនឹងកម្ពស់របស់ស៊ីន។ ជាធម្មតាឈុតដែកថែបមានទំហំ ២៥-៣០ ម។ ម (បោសសំអាតចូលឬអិលអិន) កម្ពស់នៃកន្លែងកើតហេតុគួរតែស្មើនឹងកម្ពស់នៃក្រឡាចត្រង្គដែលត្រូវបានដាក់។ ដើម្បីរក្សាស៊ីនដែលតែងតែដាក់នៅលើឥដ្ឋ។ មិនជំពប់ដួលលើរទេះរុញឬមនុស្សដែលដើរ កាត់ទទឹង នៃកន្លែងដែកខាងស្តាំ។ ដើម្បីអាចដាក់ក្រឡាចត្រង្គដោយមិនតឹងណែន។ ឬរលុងរហូតទាល់តែការដឹងគុណធ្លាក់ចុះ។
ទទឹងនៃស្មាគួរតែត្រូវបានវាស់នៅពេលវាស់ទទឹងរបស់ស៊ីមគឺ 5-10 ម។ ត្រូវបន្ថែម ៣-៥ មមនៅផ្នែកម្ខាងៗបូក ២ ជ្រុងដល់ ៦-១០ មម។

រចនាក្រឡាចត្រង្គសម្រាប់កាត់ក្រឡាចត្រង្គជាតិសរសៃដើម្បីបិទគែម។
ការរចនាប្លង់សម្រាប់អេហ្វ ។ អេច។ អេ។ ភី។

សំណាញ់អេហ្វភីអេអាចត្រូវបានកាត់បន្ថយគ្រប់ទំហំ។ ពីសន្លឹកធំទំហំ 1.5×4 ម៉ែត្រស្តង់ដារបន្ទាប់ពីកាត់ប្រសិនបើមិនបានរចនាឱ្យសមនឹងបណ្តាលឱ្យមានដើមឫសមិនស្មើគ្នា។ មើលទៅដូចជាការបើកគែម។ ដូច្នេះប្រសិនបើអ្នកចង់បិទគែម។ ត្រូវការប្រៀបធៀបជាមួយតុបិទមុនពេលកាត់។
***** សម្រាប់ព័ត៌មានបន្ថែមសូមទាក់ទងក្រុមហ៊ុន ម៉ាណូនជីនខនថេកសិនគម្រងគំរោងយោងគំរូអតិថិជន ពាក្យសុំ របៀបទិញ។ ដឹងគុណជាតិសរសៃ។ គំរបស្រះ, គម្របបំពង់, ធុងបង្ហូរទឹក។ ការផ្ទុកថាមពលហ្វ្លុយហ្គឺរផ្ទុកសមត្ថភាព
ផ្ទុកនៃការ ដឹងគុណ សរសៃ។***** ភាពរឹងមាំនៃការកិនដោយប្រើអេហ្វភីអេសគឺអាស្រ័យលើ
១) ទទឹងក្រឡាចត្រង្គមានកាន់តែទូលំទូលាយកម្លាំងកាន់តែតិច។
2) កម្រាស់របស់ចានស៊ី។ ជម្រើសនៃការប្រើប្រាស់ក្រឡាចត្រង្គក្រាស់នឹងទទួលបានកម្លាំងបន្ថែមទៀត។
3) លំនាំសម្ពាធ។ គឺជាការចែកចាយទំងន់ឬការចុចចំណុចតែមួយ។ សម្រាប់ព័ត៌មានបន្ថែមសូមទាក់ទងក្រុមហ៊ុន។FRP ផ្សិតសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅមគ្គុទ្ទេការតស៊ូគីមី
ការ៉េស្រមុងកញ្ចក់ជាតិសរសៃគីមី។ អាចទប់ទល់នឹងការ corrosion ។

វិធីកាត់
ហ្វ្រេសហ្វឺរជីវ៉ាន់ស៊ុយវិធីសាស្រ្តកាត់យូធ្យូវីយូ – វីឌីអូ។

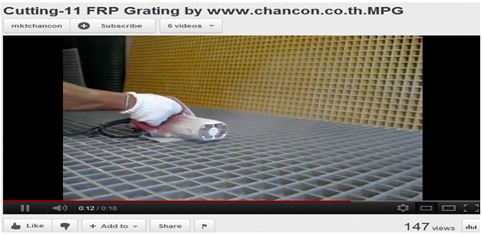

ដំណើរការវាស់ស្ទង់ជីភីអេហ្វភីវិធីវាស់កម្លាំងនិងកាត់លេខ ១ ។

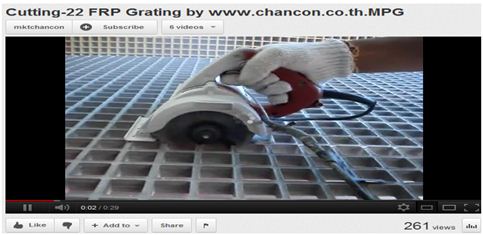

វិធីកាត់ជីអេហ្វភីអេចកាត់ដោយរាងជារង្វង់ដោយប្រើដាវកាត់ពេជ្រលេខ ២ ។

វិធីកាត់ជីអេហ្វភីអេចដោយម៉ាស៊ីនកាត់សរសៃលេខ ៣ ។ ឧបករណ៍កាត់សន្លឹកអេចភីអេសអេសអេសអេសអេសនិងឧបករណ៍វាស់វាស់។

គ្រឿងបន្លាស់តំឡើងដោយប្រើអេឡិចត្រូនិចអេចភីអិលស៊ី: អេដជីអេសជី / ដែកអ៊ីណុកក្លីដក្លីតចាក់សោរភ្ជាប់។

តម្លៃឈុតក្លីដចាក់សោរ សម្រាប់អប្បបរមា 1,5 អ៊ីញ (40 មម) គាំទ្រដល់អ្នកទាំង ៦ ។ ហ្វីតការ៉េ (០.៥៦ ម៉ែត្រការ៉េ) នៃការដឹងគុណអប្បបរមាឬយ៉ាងហោចណាស់ ៤ ឈុតសម្រាប់បំណែកការ៉េឬរាងចតុកោណយ៉ាងហោចណាស់ ៣ សម្រាប់បំណែកត្រីកោណ។ ការប្រើស៊ីម៉ងត៍ជាផ្លូវបង្ហូរទឹកមិនចាំបាច់ចាក់សោរដើម្បីជួសជុលទេ។ ប៉ុន្តែក្នុងករណីដែលប្រើជាកំរាលឥដ្ឋផ្លូវដើរ។ ឬចានកើនឡើង។ បានផ្តល់អនុសាសន៍ឱ្យប្រើឈុតចាក់សោដែកអ៊ីណុកថ្នាក់ទី ៣១៦ សម្រាប់ការតម្លើងចានស៊ីម៉ងត៍ជាមួយនឹងរចនាសម្ព័ន្ធប្រកបដោយប្រសិទ្ធភាព។ ជាទូទៅត្រូវតែរឹបអូសនៅគ្រប់តំបន់។ ដូចជាត្រីកោណ។ ត្រូវតែដណ្តើមយកបានទាំងបីចំនុច។ ឬក្នុងករណីការ៉េវាត្រូវតែត្រូវបានជួសជុលនៅ ៤ ចំនុចដើម្បីការពារការផ្លាស់ទីលំនៅរបស់ស៊ីននៅពេលប្រើជាយូរមកហើយ។ ឬគណនាការប្រើប្រាស់ឃ្លីបចាក់សោរ ១ ក្នុង ១ ម៉ែត្រការ៉េ។ Chancon ក្រុមហ៊ុនផលិតប្រព័ន្ធលូបង្ហូរទឹក។ កំរាលឥដ្ឋ។ អន្ទាក់សំរាមនៅក្បែរចិញ្ចើមផ្លូវ។ កាំជណ្ដើរជំហាន។ ទំងន់ស្រាលលើកកំរាលកំរាល។ លាងសមាតឱ្យបានល្អ។ គម្របបំពង់។ កំរាលឥដ្ឋនៅក្នុងទីធ្លាផលិតកម្មពហុមេន។ បន្ទះក្តាមនៅជុំវិញម៉ាស៊ីន។ ប្រព័ន្ធប្រព្រឹត្តិកម្មទឹកសំណល់កំពូលផ្លូវដើរ។ ការពារការច្រេះពីទាំងពន្លឺព្រះអាទិត្យច្រែះនិងសារធាតុគីមី។

# ក្រឡាចត្រង្គដែកថែបកែវជាតិសរសៃបង្ហូរទឹកផ្លាស្ទិចបង្ហូរទឹកហៀរទឹកគែមអាងហែលទឹកដែលបានរៀបចំរួច # គម្របចាក់ស្រោបដែកគម្របបង្ហូរទឹក # អេហ្វ។ អេ។ ភី។ អេហ្វ។ អេស។ អេ។ អេស។ អេស។ គម្រប, # ទឹកហូរលើទឹកហូរបង្ហូរទឹកស្អុយ Gully Grating Gutter, #Saddle Clip Clamp Lock fastener, #Slaf Trapper Side Highway Scupper Drainage Inlet Grating ទប់ស្កាត់ ក្រៅពីចិញ្ចើមផ្លូវ # អ៊ីហ្គេសក្រេហ្គ្រីលឌ្រីហ្គូឌឺឌ័រឌ័រឌូស៊ើរឌ្រីបឺរឌ័រឌុយឌឺរបន្ទះអាងចិញ្ចឹមត្រី។ ធុងត្រី, ឧបករណ៍ការពាររបាំង #Stair Tread Nosing Step # គម្របច្រមុះច្រមុះគែមបន្ទះការពាររអិល # ស៊ុមការពារសុវត្ថិភាពការពារសុវត្ថិភាព # ស៊ុមមែកឈើ #Perforated Pegboard Hook Shelves Rack Storage Storage DIY Kit, # ក្តារបន្ទះក្តារបន្ទះដែកប្រហោងជញ្ជាំងជញ្ជាំងឧបករណ៍ព្យួរឧបករណ៍ឧបករណ៍កំរាលឥដ្ឋផ្លូវដើរ។

# អ្នកជំនាញផ្នែកគ្របម៉ាណូវូនហ្គូនជីលអិចអេហ្វអិលអេសផ្សំដែកហ្គូលលីសឌុយឌឺរហ្គឺរ។ Tied Rod Formworks, ThreadBar WaterStopper Anchorage WingNut, បំពង់បង្ហូរទឹកដែករាងជាបំពង់, គម្របជាតិសរសៃជ័រ, គម្របធុងទឹក Manhole Hanhol, គម្របបំពង់, គម្របបំពង់។ លូបង្ហូរទឹកសំណល់ទឹកផ្លូវទឹកល្អ។ គម្របបំពង់រាងមូលការ៉េគម្របបេតុងស៊ីម៉ងត៍ដែកថែបពង្រឹងគំរបសម្រាប់ប្រព័ន្ធប្រព្រឹត្តកម្មទឹកសំណល់ប្រភេទកាត់ភ្លាមៗ; គម្របក្រឡាចត្រង្គធ្វើពីដែកថែបធ្វើពីដែកថែបធ្វើពីដែកថែបព័ទ្ធជុំវិញគល់ឈើ។ គម្របច្រមុះគែមជ្រុងរោមចិញ្ចើមបន្ទះការពារការរអិល Perforated, Pegboard Shelves Hook, ឧបករណ៍ផ្ទុកឧបករណ៍ DIY, ក្តារក្រាលក្តារបន្ទះបន្ទះដែកថែបរន្ធប្រហោងជញ្ជាំងម៉ោនជញ្ជាំងព្យួរឧបករណ៍ផ្ទុកឧបករណ៍ដៃ # រោងចក្រផលិតឧបករណ៍ពន្លុងឧបករណ៍។ ក្តារបន្ទះអាលុយមីញ៉ូមដែកឈើ។ ខួងរន្ធសម្រាប់ម៉ោនជញ្ជាំងការតុបតែងផ្ទះផ្ទះបាយ # បន្ទះឈើបន្ទះដែកបង្កើតជាកណ្តាប់ដៃដាល់រន្ធ។ គ្រឿងបរិក្ខារដែលប្រើសម្រាប់ចាក់ដែកថែបអាងត្រពាំងឈ្នាន់ធូលីអេក្រង់បង្ហូរទឹកផ្នែកខាងផ្លូវបង្ហូរធូលីភ្ជាប់ផ្លូវថ្នល់ចរាចរណ៍ផ្លូវលំក្រអឺតក្រទមប្រព័ន្ធបង្ហូរទឹកដែលមានសុវត្ថិភាពនៅតាមបណ្តោយផ្លូវហាយវ៉េទប់ស្កាត់ជាមួយប្រអប់បង្ហូរ បង្ហូរគែមនៃផ្លូវដើរ។ ដាក់អន្ទាក់ធូលីដីល្បាប់សំរាមកាកសំណល់អាហារស្លឹកក្រដាសដំបងថ្មប្រអប់ក្រឡាចត្រង្គបង្កាន់ដៃទឹក។ ពេញ, ពាក់កណ្តាល, ក្បាល, ជុំ, កាត់បន្ថយ។ ផ្លូវអែបខាងផ្លូវអែប, ការបញ្ជាក់ស្របតាមស្តង់ដារក្រុង។ មន្ទីរសាធារណការនិងផែនការក្រុង។ នាយកដ្ឋានផ្លូវជនបទ។ អាជ្ញាធរលំនៅដ្ឋានជាតិ។ ផ្លូវល្បឿនលឿនថៃ។ ផ្លាស្ទិចឯកទេសដើម្បីបង្ហូរនៅលើអាង។ គ្រឹះក្តាម, ជំនួសដែកថែប, ភីភីអេសភីភីអេសភីអេអេសអេសហែលទឹកប្លាស្ទិកប្លាស្ទិកបន្ទះកញ្ចក់កញ្ចក់អគារហាងហាងតោងជញ្ជាំងខាងក្រៅកម្រាលឥដ្ឋច្រករបៀង ស្មាប្រអប់ជើងក្តាមគាំទ្រផលិតផលពីខ្សែក្រវ៉ាត់ conveyor លើកកំពស់ប្រជាប្រិយនិងសួនច្បារ។ តំបន់អនាម័យ, វាលអគ្គិសនី, ដំណាក់កាល, ការប្រកួត, ប្លុកដាំស្មៅ។ លួសប្លាស្ទិចលួស។ ការរចនាជាច្រើនដើម្បីជ្រើសរើស។ អាចត្រូវបានកាត់និងតុបតែងដើម្បីក្លាយជាគ្រឿងសង្ហារិមបន្ថែមទៀតធ្វើពីក្រដាសជញ្ជាំងជញ្ជាំងធ្វើពីដែក stencil ប្រើសម្រាប់តុបតែងកន្លែងផ្សេងៗស្រស់ស្អាតនិងប្លែក បង្កើនកម្រិតនៃប្រជាប្រិយនិងសួនច្បារ។ តំបន់អនាម័យ, វាលអគ្គិសនី, ដំណាក់កាល, ការប្រកួត, ប្លុកដាំស្មៅ។ លួសប្លាស្ទិចលួស។ ការរចនាជាច្រើនដើម្បីជ្រើសរើស។ អាចត្រូវបានកាត់និងតុបតែងដើម្បីក្លាយជាគ្រឿងសង្ហារិមបន្ថែមទៀតធ្វើពីក្រដាសជញ្ជាំងជញ្ជាំងធ្វើពីដែក stencil ប្រើសម្រាប់តុបតែងកន្លែងផ្សេងៗស្រស់ស្អាតនិងប្លែក បង្កើនកម្រិតនៃប្រជាប្រិយនិងសួនច្បារ។ តំបន់អនាម័យ, វាលអគ្គិសនី, ដំណាក់កាល, ការប្រកួត, ប្លុកដាំស្មៅ។ លួសប្លាស្ទិចលួស។ ការរចនាជាច្រើនដើម្បីជ្រើសរើស។ អាចត្រូវបានកាត់និងតុបតែងដើម្បីក្លាយជាគ្រឿងសង្ហារិមបន្ថែមទៀតធ្វើពីក្រដាសជញ្ជាំងជញ្ជាំងធ្វើពីដែក stencil ប្រើសម្រាប់តុបតែងកន្លែងផ្សេងៗស្រស់ស្អាតនិងប្លែក
សមាសធាតុអាលុយមីញ៉ូមសមាសធាតុអេហ្វភីអេសធន់នឹងការច្រេះច្រេះកំដៅទឹកអាស៊ីតអាល់កាឡាំងគីមីការសន្សំថាមពលមិនងាយរំលាយមិនពុលមិនងាយឆេះជាតិសរសៃឬប្រភេទពិសេសនៃជាតិសរសៃកញ្ចក់ភីតធីប សៀមដែកថែបហ្វាយហ្គ្រេសវ៉េនវែលវ៉េស្ទេនហៃទីឌីកឃីតអេសជីអេចអូមេដដេប៉ូសម្ភារៈថៃការងារជួសជុលកំរាលឥដ្ឋសម្ភារៈថ្នាំលាបលើផ្ទៃអេភូថលអ៊ីប៉ូតអេស្យូមជាន់អ៊ីប៉ូត។ Poly Urethane, PVC adhesive, Bio Bio, PE PU បេតុង, ថ្នាំកូត, ថ្មរឹង, ការកែលម្អជាន់ឧស្សាហកម្ម , ផ្ទះបាយសណ្ឋាគារថ្នាំលាបធន់នឹងជាតិគីមីអាគ្រីលីកជួសជុលស្នាមប្រេះលេចធ្លាយថ្នាំកូតការពារជ្រាបទឹកដំបូលធុងស្តុកសារធាតុគីមីរនាំងកញ្ចក់ជាតិសរសៃដំបូលប្រក់ដែកសម្ភារៈជំនួសដែកថែប , ឈើសំយោគ, ជីវ, កែច្នៃ, ឧបករណ៍, ការងារផ្កា, ជាន់, ពាក់, រន្ធត់, trough, ហៀរ, គែមនៃអាង, សន្លឹកផ្ទះល្វែង, louver, កំរាលឥដ្ឋ, វេទិកាម៉ាស៊ីន, កំរាលឥដ្ឋ, ថាស ធ្នើជាន់អាគារផ្ទះ។ ប្លុកដង្កូវត្រួសត្រាម៉ូដតុបតែង។ ច្រករបៀងផ្លូវដែករាងជារាងអក្សរយូបង្ហូរទឹកគែមគែមផ្លូវអឹមអឹមអេស – លួសជាមួយនឹងស៊ុមឆានែលបង្ហូរទឹកលួសដែកបំពង់បង្ហូរទឹកភ្នែកបើកកាត់រន្ធដែកថែបកាបោនត្រីកោណមាន់រទេះភ្លើងភ្លៀង ជណ្តើរប្រឆាំងនឹងរអិល, ផ្លូវដែកប្រឆាំងនឹងការដួលរលំ, សំណាញ់ខ្នាតតូច, ក្លិន, ប្លុក, ត្រួសត្រាយ, ផ្នែកខាងក្រៅ, ការតុបតែងស្រះទឹក koi, ទេសភាព, ក្បឿង, ការឡើងជាន់, ការផ្លាស់ប្តូរហុងស៊ុយ, ការដំឡើង DIY ងាយស្រួលដោយខ្លួនឯងទិញកន្លែង។ ការត្រួតពិនិត្យប្រឆាំងនឹងបក្សី, ម្លប់ Trellis, បន្ទះជញ្ជាំងតុសសកុដិ, បន្ទះ Splashboard / Weatherboard / Slat blinds ។ បន្ទប់ប្រជុំផ្សារទំនើបសាលារៀនច្រករបៀងបន្ទប់ងូតទឹកមន្ទីរពេទ្យការតុបតែងលំអឡើងវិញ ពិដានជញ្ជាំងវាំងនន។ របងភាគថាស។ តុសសកុដិដំបូលបណ្តាញ batten ។ ហ៊ីងបត់, ផ្នែកខាងមុខ, ជញ្ជាំង, ជញ្ជាំងផ្នែកខាងក្រៅ, ពិការភ្នែក, ប្លុកអាគារ, បារពន្លឺ, ភ្លើងបំភ្លឺ, អណ្តែតអណ្តែត, ក្រឡាចត្រង្គ T-bar, ព្យួរបន្ទះពិដាន, ជញ្ជាំងស្រាល, វាំងននស្រអាប់ ការតុបតែងលំអច្រើនប្រភេទតុសសកុដិ blinds របងហ៊ុមព័ទ្ធស្លាបព្រួញឡើងភ្នំការពារស្លាបបក្សីសំណាញ់បក្សីកំប្រុកបន្ទះពស់ រីករាយ, ប៉ូលីកាបូណាត, ប្លាស្ទិច, កន្លែងបែងចែកការិយាល័យ, បន្ទប់ទឹក, រានហាលខាងមុខ, ចាន stencil, ទំហំជាច្រើន ពិដានតុបតែងប្រព័ន្ធបិទជិតម៉ាស៊ីនត្រជាក់ខ្សែភ្លើងបន្ទប់ចែកបន្ទប់ថ្នាក់ទី ១ ដែលមានគុណភាពខ្ពស់។ ការរចនាល្អឥតខ្ចោះនៃអាគារ។ ប្លាស្ទិចប៉ូលីកាបូណាតបែងចែកការិយាល័យការិយាល័យបន្ទប់ទឹកបន្ទប់ខាងមុខរានហាលចានដែកមានទំហំជាច្រើន។ ពិដានតុបតែងប្រព័ន្ធបិទជិតម៉ាស៊ីនត្រជាក់ខ្សែភ្លើងបន្ទប់ចែកបន្ទប់ថ្នាក់ទី ១ ដែលមានគុណភាពខ្ពស់។ ការរចនាល្អឥតខ្ចោះនៃអាគារ។ ប្លាស្ទិចប៉ូលីកាបូណាតបែងចែកការិយាល័យការិយាល័យបន្ទប់ទឹកបន្ទប់ខាងមុខរានហាលចានដែកមានទំហំជាច្រើន។ ពិដានតុបតែងប្រព័ន្ធបិទជិតម៉ាស៊ីនត្រជាក់ខ្សែភ្លើងបន្ទប់ចែកបន្ទប់ថ្នាក់ទី ១ ដែលមានគុណភាពខ្ពស់។ ការរចនាល្អឥតខ្ចោះនៃអាគារ។

ការឆ្លុះនិងសរសៃដែកធ្វើពីសរសៃអំបោះរបស់យើង ផ្តល់នូវភាពធន់ទ្រាំនឹងការច្រេះដែលមិនមានលក្ខណៈពិសេសជាពិសេសបើប្រៀបធៀបទៅនឹងផលិតផលកម្រាលដែក។ ភាពរឹងមាំនៃផលិតផលធ្វើពីសរសៃអុបទិករបស់យើងនិងលក្ខណៈសម្បត្តិដែលមិនមានចរន្តអគ្គិសនី។ យើងផ្តល់ជូននូវកម្មវិធីផ្ទុកជាច្រើនប្រភេទផ្សេងៗគ្នា។ ការប្រើសំណាញ់សរសៃអុបទិកមានចាប់ពីឡេការពារកម្តៅថ្ងៃនិងកម្រាលឥដ្ឋអុបទិករហូតដល់កម្មវិធីរំកិលផ្ទុកខ្ពស់។ ផ្ទៃដែលមានរាងស្អាតនិងពណ៌ស្តុកស្ដង់ដារឬពណ៌ផ្ទាល់ខ្លួនត្រូវបានផ្តល់ជូននូវកម្មវិធីសរសៃកញ្ចក់របស់អ្នក។ ជ្រើសរើសពីប្រភេទជ័រផ្ទាល់ខ្លួនរបស់យើងសម្រាប់ផលិតផលកម្រាលឥដ្ឋ។
molded Grating សំឡីកែវ គឺជាការសមលីកេវ-បំពេញបន្ថែមប្លាស្ទិច (FRP នេះ) ដែលរួមបញ្ចូលគ្នាជាមួយនឹងការ roving ជ័រសំឡីកែវត្រូវបាន Thermosetting, ខ្លាំងដើម្បីបង្កើត, មួយដុំបន្ទះ molded ។ ជ័រ ៦៥% / ៣៥% ផ្តល់សមាមាត្រទំងន់កញ្ចក់ធន់នឹងច្រេះខ្ពស់។ ផ្ទៃ Meniscus ឬផ្ទៃលាបត្រូវបានផ្តល់នូវភាពធន់នឹងការរអិលបើប្រៀបធៀបទៅនឹងផលិតផលកម្រាលឥដ្ឋផ្សេងទៀត។ ផលិតផលក្រឡុកសរសៃអំបោះនេះសមស្របសម្រាប់បរិស្ថានដែលច្រេះ។ ល្ពៅរាងសំប៉ែតរាង
សំប៉ែតដែលមានជាតិសរសៃសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។ត្រូវបានផលិតចេញពីប៉ូលីយូធ្យូលីកអ៊ីប៉ូតាលីកកំរិតខ្ពស់ប្រព័ន្ធប្លាស្ទិចអេទីឡែនឬជ័រជ័រប៉ូលីណុលដែលមានស្បៃវាំងននសំយោគស្រាល ៗ និងប្រើបានយូរ។ សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅសរសៃកញ្ចក់ Pultruded ។ ជ័រ ៣៥% / ៦៥% មានភាពធន់នឹងច្រេះកញ្ចក់ជាជាងកាវបិទសរសៃកញ្ចក់។ ផលិតផលនេះត្រូវបានសមល្អជាងមុនសម្រាប់កម្រាលឥដ្ឋ fiberglass បានយូរ។
ក្រឡុកសរសៃអំបោះ។ សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅសរសៃអុបទិករបស់យើងគឺជាចានឆាំងដែលមានរាងវែងនិងមានរាងវែងត្រូវបានផលិតជាមួយប្រព័ន្ធជ័រណាមួយរបស់យើង។ វាជាជំរើសល្អបំផុតនៅពេលជាន់ ១០០% គ្របដណ្ដប់។ ក្រឡាចត្រង្គគ្របលើសរសៃអំបោះរបស់យើងជារឿយៗត្រូវបានប្រើនៅក្នុងកន្លែងផ្ទុកនិងផ្ទុក។ វាផ្តល់នូវតម្លៃរឹងប្រហែល 50% ខ្ពស់ជាងសំណាញ់សំណាញ់បើកចំហនិងស្តង់ដាររបស់វា។
គ្រាប់កាំភ្លើងធន់នឹងគ្រាប់កាំភ្លើង។ ចានសរសៃអុបទិករបស់យើងផ្តល់នូវភាពធន់ទ្រាំនឹងគ្រាប់ផ្លោងដែលមានទំងន់តិចជាង 25% នៃបន្ទះដែកដែលអាចប្រៀបធៀបបាន។ ឥឡូវនេះអាចរកបានសម្រាប់សុវត្ថិភាពពាណិជ្ជកម្មបន្ទះសរសៃអំបោះទាំងនេះផ្តល់ជូននូវសុវត្ថិភាពធន់នឹងផ្លេកបន្ទោរជាមួយនឹងចរន្តកម្ដៅទាបនិងទំងន់ស្រាល។
សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅចំពោះជាតិសរសៃកាតព្វកិច្ចធ្ងន់។ ប្រព័ន្ធក្រឡុកសរសៃអុបទិកដែលមានមុខងារធ្ងន់របស់យើងអាចរកបានទាំងនៅក្នុងប្រព័ន្ធក្រឡាចត្រង្គដែលមានរាងដូចផ្សិតនិងប្លាស្ទិក។ សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅចំពោះជាតិសរសៃអុបទិកត្រូវបានរចនាឡើងដើម្បីដឹកឈុតខ្លីៗដែលការផ្ទុកតាមបែបបុរាណនិងផាប់ស្ទ្រីតមិនត្រូវបានរចនាឡើងដើម្បីទ្រទ្រង់។ ការដឹងគុណសរសៃវ៉ែនតាការពារធុនធ្ងន់ផ្តល់នូវភាពធន់ខ្ពស់សម្រាប់តំបន់ចរាចរណ៍ដែលមានបរិមាណកាន់តែខ្ពស់ផងដែរ។ លើសពីនេះទៀតការបំពេញកាតព្វកិច្ចធ្យូងថ្មធុនធ្ងន់អាចត្រូវបានប្រើដើម្បីពង្រីកចម្ងាយឆ្ងាយ។
ជណ្តើរកាំជណ្ដើរធ្វើពីសរសៃកញ្ចក់និងជណ្តើរកញ្ចក់ជណ្តើរធ្វើពីសរសៃកញ្ចក់។ ទំងន់ស្រាលនិងងាយស្រួលតំឡើងកាំជណ្ដើរជណ្តើរធ្វើពីសរសៃកញ្ចក់អាចរកបានទាំងប្រភេទផ្សិតនិងព្រូន។ គម្របកាំជណ្ដើរធ្វើពីសរសៃកញ្ចក់ត្រូវបានផលិតពីកញ្ចក់និងជ័រដែលមានភាពច្រេះនិងមានឥទ្ធិពលធន់នឹងភ្លើងឆេះនិងមិនស៊ីភ្លើង។ ពួកគេផ្តល់នូវផ្ទៃការពារដែលមានភាពធន់នឹងការរអិលសម្រាប់ជំហានបេតុងដែកនិងឈើ។
ធ្នឹមក្រឡាចត្រង្គធ្វើពីសរសៃអំបោះនិងកាំជណ្តើរសំឡីកែវ។ ប្រព័ន្ធដាប់ប៊ែលហ្គ្រែនដាប់ប៊ឺរនិងប្រព័ន្ធកាំបិតកញ្ចក់អុបទិកត្រូវបានប្រឌិតចេញពីសមាសធាតុផ្សំ។ ប្រព័ន្ធដាប់ប៊ែលដាប់ប៊ែលដាប់ប៊ែលឌីជីថលរបស់យើងអាចរកបាននៅក្នុងរង្វង់ ២ អ៊ីញឬ ២ អ៊ីញដែលងាយស្រួលក្នុងការក្តាប់សម្រាប់តំបន់ដែលមានចរាចរណ៍ខ្ពស់។ កាំជណ្ដើរនិងទ្រុងធ្វើពីសរសៃអំបោះរបស់យើងអាចត្រូវបានតំឡើងតាមកម្មវិធីផ្សេងៗពីធុងរថក្រោះប្រដាប់ប្រដារចល័តជាដើមដែលផ្តល់នូវភាពរឹងមាំនិងភាពជឿជាក់។
ឯកសារភ្ជាប់សរសៃអុបទិកនិងក្លីប៊ឺលបឺរ។ឯកសារភ្ជាប់និងខ្សែអុបទិករបស់យើងត្រូវបានរចនាឡើងដើម្បីធានាការឆ្លុះសរសៃអំបោះទៅនឹងរចនាសម្ព័ន្ធទ្រទ្រង់។ លើសពីនេះទៀតពួកវាត្រូវបានប្រើសម្រាប់បន្ទះដុតដែលកាត់បន្ថយការផ្លាស់ប្តូរឌីផេរ៉ង់ស្យែលផ្ទុកដែលកាត់បន្ថយ។ រាល់ឯកសារភ្ជាប់និងសរសៃអុបទិកត្រូវបានផលិតពីដែកអ៊ីណុកប្រភេទ ៣១៦ និងមានក្នុងទំហំ ១ – ១-១ / ២- និង ២ អ៊ីញ។
ចានសរសៃអុបទិកគឺជា ផ្ទៃដែលមិនមែនជាចំហាយដែលធ្វើឱ្យពួកគេមានសុវត្ថិភាពនិងជាដំណោះស្រាយចំពោះផ្ទៃដើរ។ លើសពីនេះទៀតចានធ្វើពីសរសៃអំបោះផ្តល់នូវភាពធន់នឹងច្រេះច្រើនជាងដែកអ៊ីណុក។ ការប៉ះលើផ្ទៃរអិលគឺត្រូវការជាចាំបាច់។
ទំរង់រចនាសម្ព័ន្ធ សរសៃអុបទិក រាងរចនាសម្ព័ន របស់សរសៃអំបោះនិងទម្រង់ធ្វើពីសរសៃអំបោះរាងសំប៉ែតត្រូវបានផលិតចេញពីការរួមបញ្ចូលគ្នារវាងប្រព័ន្ធជ័រនិងសរសៃធ្វើពីជ័រ។ រាងទាំងអស់មានទំងន់ស្រាលធន់នឹងផលប៉ះពាល់ការថែទាំទាបសម្រាប់កម្មវិធីជាច្រើន។ រាងផ្ទាល់ខ្លួនអាចរកបានតាមការស្នើសុំ។

ការតែងនិពន្ធ (GFRP) ការវាយតំលៃ: តើអ្វីទៅជាអេច។ អេ។ អេ។ ភី (ប្លាស្ទិចដែលបានពង្រឹងដោយកញ្ចក់ប្លាស្ទិច)?
ជីអេហ្វភីអេចគឺជាសម្ភារៈផ្សំដែលធ្វើពីម៉ាទ្រីសប៉ូលីមែរដែលត្រូវបានបំពេញបន្ថែមជាមួយជាតិសរសៃក្នុងគោលបំណងបង្កើតបានជារូបធាតុគីមីនិងគីមីល្អជាងមុន។ ជីអេហ្វភីអេចគឺជាវត្ថុធាតុដើមដូចជាលោហៈឈើកញ្ចក់។ សមា្ភារៈ GFRP មានគុណសម្បត្តិសំខាន់ៗ។ តើ GFRP ត្រូវការអ្វីខ្លះ? ការដឹងគុណ GFRP ដែលផលិតដោយផ្សិតត្រូវបានផលិតនៅក្នុងផ្សិតពិសេសដែលមានដំណើរការផ្សាំសើមមានជាតិសរសៃកញ្ចក់ជ័រសារធាតុបន្ថែមនិងសារធាតុពណ៌។ បន្ទាប់ពីវត្ថុធាតុដើមទាំងនេះរឹង, ការពេញចិត្ត GFRP ត្រូវបានចុចចេញពីផ្សិត។ ការពេញចិត្តរបស់ GFRP គឺស្រាល, ប្រឆាំងនឹងការច្រេះ, មានភាពធន់ទ្រាំគីមីនិងរាងកាយខ្ពស់និងមិនប្រើអគ្គិសនី។ សមាសធាតុផ្សំ៖ ជ័រកែវជាតិសរសៃនិងសារធាតុពណ៌គឺជាសមាសធាតុមូលដ្ឋាននៃវត្ថុធាតុដើម GFRP ។ វាអាចត្រូវបានផលិតសម្ភារៈណាដែលសមស្របសម្រាប់តំរូវការដោយផ្លាស់ប្តូរសមាសធាតុទាំងនេះ។ ជ័រ៖ ភាពធន់, ការពេញចិត្ត GFRP ត្រូវបានកំណត់ដោយជ័រ។ ជ័រត្រូវបានជ្រើសរើសស្របតាមបរិស្ថាន។ ជ័រ orthophthalic សម្រាប់ការប្រើប្រាស់ទូទៅ, ជ័រ isophthalic សម្រាប់ជ័រ ester សម្រាប់បរិស្ថាននិងប្លាស្ទិចសម្រាប់បរិស្ថានគីមីធ្ងន់។ ជាតិសរសៃកញ្ចក់៖ សរសៃកញ្ចក់ជាប់គ្នាច្រើនស្រទាប់ត្រូវបានប្រើក្នុងផលិតកម្ម។ ការដឹងគុណ GFRP ដែលមានផ្សិតមានភាពធន់នឹងមេកានិចខ្ពស់ដោយសារតែជាតិសរសៃកញ្ចក់។ សារធាតុបន្ថែមដូចជាស្ថេរភាពកាំរស្មីយូវីអណ្តាតភ្លើងនិងអណ្តាតភ្លើងផ្សែងទាប។ សារធាតុពណ៌: សារធាតុពណ៌ធ្វើឱ្យវាអាចធ្វើឱ្យ GFRP ពេញចិត្តពណ៌ណាមួយ។ នេះធ្វើឱ្យ GFRP ពេញចិត្តក្នុងគម្រោងស្ថាបត្យកម្ម។

ការដាក់បញ្ចូលថ្មម៉ាបនៅលើផ្សិតតាមសរសៃប្រសាទ Fibergrate Pedestals Adjustable Grating គឺជាសមាសធាតុដែលមានគុណភាពខ្ពស់ដែលត្រូវបានរចនាឡើងដើម្បីគាំទ្រដល់ការកើនឡើងនៃការដឹងគុណ។ អាចកែលំអមិនចេះរីងស្ងួតនៅក្នុងជួរដែលបានបញ្ជាក់ថ្មើរជើងស្តង់ដារលើកវេទិកានិងជើងទម្រផ្ទាល់ខ្លួន។ ថ្មើរជើងអាចរកបានសម្រាប់សំណាញ់ទី ១ “១-១ / ២” និង ២ “សំណាញ់ជាតិសរសៃឬគីមីឆ្លុះដោយជាតិសរសៃគីមី។ ក្បាលសម្រាប់ថ្មើរជើងត្រូវបានស្តុកទុកក្នុងការរចនា” ក្បាលតែមួយ “និង” ក្បាលបួន “។ •មានភាពងាយស្រួល – បង្កើតផ្ទៃដើរកម្រិតនៅជាន់រអិល• VERSATILE – អាចប្រើបានសម្រាប់បណ្តាញការ៉េហ្វុយហ្គ្រេតនិង Chemgrate ទាំងអស់•មានប្រសិទ្ធិភាពខ្ពស់ – ផ្លាស់ទៅកន្លែងផ្សេងទៀតយ៉ាងងាយស្រួល•ពន្លឺ – ម៉ូឌុល,

ផ្តល់ជំនួយដល់ថ្មើរជើង។
សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ? ជំនួយដល់ថ្មើរជើងការគាំទ្រពីពេលមួយទៅពេលមួយការដឹងគុណ FRP នឹងមិនត្រូវបានប្រើទេ។ តំបន់ដូចជាការទិញគីមីការដំឡើងកំរាលឥដ្ឋនិងស្ថានីយ៍កន្លែងធ្វើការបន្ទប់ដាំថ្នាំព្យាបាលដោយប្រើគីមីកន្លែងដើរមិនរអិលកន្លែងដើរជាន់និងកន្លែងធ្វើការការតំឡើងកាំជណ្ដើរសេវាកម្មអគ្គិសនីនៅក្រោមតំបន់ តម្រូវឱ្យមានការមិនអនុវត្ត។ ទ្រទ្រង់បាតជើងអេហ្វភីភីភីរបស់យើងដែលអាចលើកកំរាលឥដ្ឋរបស់អេហ្វភីភីរបស់យើងហើយភ្ជាប់ទៅនឹងសំណាញ់នៃសំណាញ់របស់យើង។ បន្ទះនៃការដឹងគុណរបស់យើងអាចត្រូវបានចូលរួមនៅក្នុងតំបន់តែមួយ។ ទទឹងអាចត្រូវបានជួសជុលទៅជាន់។ និងដល់កំពូលនៃការដឹងគុណរបស់យើងដោយប្រើឈុតចំនួន ៣១៦ វិនាទី / វិនាទីរបស់យើងដើម្បីឱ្យសម។ នេះផ្តល់នូវមូលដ្ឋានរឹងមាំខ្លាំងដែលអាចផ្ទុកបន្ទុកខ្ពស់។ ជាន់មិនស្មើគ្នាយើងអាចផ្គត់ផ្គង់ឈ្នាន់សម្រាប់ពាក្យសុំរបស់អ្នក។

អេហ្វភីអេសជណ្តើរជណ្តើរ – ជ
ណ្តើរជណ្តើរខ្សែជណ្តើរកញ្ចក់និងជណ្តើរគឺជាការបំពេញបន្ថែមដ៏សំខាន់ចំពោះការតំឡើងក្រឡាចត្រង្គដែលមានរាងដូចផ្សិត។ កង់ដែលមានភាពធន់នឹងការរអិលទាំងនេះគឺជាបរិស្ថានដែលប្រឈមនឹងបញ្ហាបំផុតនៅក្នុងពិភពលោក។ អាចត្រូវបានផ្គត់ផ្គង់ផ្គត់ផ្គង់ទៅនឹងការគៀបសង្កត់របស់អតិថិជនឱ្យបានត្រឹមត្រូវនិងគ្របដែលងាយនឹងប្រឌិត។
គម្របជាន់ឈ្លីគឺជាមធ្យោបាយងាយស្រួលមួយក្នុងការផ្តល់នូវភាពធន់នឹងការរអិលដែលនៅតែមានសម្លេងល្អ។ គម្របជណ្តើរអាចត្រូវបានតំឡើងលើឈើបេតុងរឺដែក។ សម្រាប់កម្មវិធីស្ថាបត្យកម្ម។ ផ្ទៃខាងលើគ្រើមរបស់អាលុយមីញ៉ូមអុកស៊ីដផ្តល់នូវសុវត្ថិភាពសម្រាប់សុវត្ថិភាពអតិបរិមានិងអាចប្រើបានយូរ។ ពង្រឹងជាមួយកញ្ចក់ត្បាញ។ កម្រាស់ស្តង់ដារគឺជាគម្របក្រាស់ជាច្រើនដែលអាចប្រើបានសម្រាប់ការអនុវត្តកាតព្វកិច្ចធ្ងន់។ បន្ទះវែងស្តង់ដារត្រូវបានកាត់យ៉ាងងាយស្រួលទៅនឹងប្រវែងផ្ទាល់ខ្លួន។
ថ្នាំង Phosphorescent Nosing៖ គម្របកាំជណ្ដើរលើចានធ្វើពីសរសៃអាចត្រូវបានគេបញ្ជាទិញជាមួយថ្នាំកូតផូស្វរ័រពិសេសសម្រាប់តំបន់ច្រមុះ។ ច្រមុះពិសេសគឺជណ្តើរមួយដែលដើរតួជាគ្រាអាសន្ននៅពេលដាច់ចរន្តអគ្គិសនីដូចជាកប៉ាល់ដឹកអ្នកដំណើរ។ ច្រមុះពិសេសនេះត្រូវបានសាកល្បងដោយអនុលោមទៅតាមអាយអេសអូ / អាយធីនិងបច្ចេកវិទ្យាសមុទ្រ – ភ្លើងបំភ្លឺទីតាំងទាបនៅលើនាវាដឹកអ្នកដំណើរ។

ការបង្ហាប់សរសៃអំបោះ> គម្របសង្កត់លើអេចភីអេស> ការសង្កត់លើកង់។
លក្ខណៈពិសេសខ្ពង់ខ្ពស់មួយចំនួនរបស់ TreadGrip គឺ។ យូរអង្វែង: TreadGrip គឺជាវត្ថុធាតុដើមដែលធ្វើពីកញ្ចក់ត្បាញដែលមានគុណភាពខ្ពស់ដែលត្រូវបានច្របាច់បញ្ចូលជាមួយជ័រ polyester isophthalic ។ ការស្រូបយកថាមពលនិងភាពបត់បែនរបស់ TreadGrip ។ ធានាបាននូវអាយុកាលវែងសូម្បីតែនៅក្នុងបរិស្ថានដែលមមាញឹកបំផុត។ ភាពធន់នឹងរអិល: សមាសធាតុនៃកាបោននិងស៊ីលីខនត្រូវបានបន្ថែមនៅក្នុងស្រទាប់ចុងក្រោយនៃស្រទាប់ការពារដែលផ្តល់នូវភាពធន់នឹងភាពរអិលនិងផ្ទៃពាក់ខ្លាំង។ ភាពធន់នឹងច្រែះៈសារធាតុគីមីជាច្រើនមានលក្ខណៈសមស្របសម្រាប់ការប្រើប្រាស់សូម្បីតែនៅក្នុងបរិស្ថានដែលពិបាកបំផុត។ មគ្គុទេសក៍ធន់នឹងគីមីមានតាមការស្នើសុំ។ តំឡើងងាយៗៈភាពបត់បែនរបស់ TreadGrip ។ បេតុងឈើឬឈើ។
ជណ្តើរផ្គត់ផ្គង់ជណ្តើរយន្តភី។ អិល។ ភី។ អាចរកបាននៅក្នុងប្រព័ន្ធជ័រទឹកអ៊ីប៉ូតាលីកវីលីលីននិងប៉ូលីណូលីនកម្មវិធីឧស្សាហកម្មនិងក្នុងស្រុក។ ជាន់ជណ្តើរដែលមានរាងដូចអេហ្វភីអិលបានភ្ជាប់មកជាមួយគែមច្រមុះផ្ទុយដែលត្រូវការសម្រាប់ជណ្តើរមានពណ៌ខាងមុខ (ច្រមុះ) ពណ៌ផ្ទុយសម្រាប់ជណ្តើរ។ ជាទូទៅពណ៌ដែលជាន់ជណ្តើររបស់យើងគឺ៖ ពណ៌ប្រផេះនិងច្រមុះពណ៌លឿង។ ពណ៌ផ្សេងទៀតអាចរកបានប្រសិនបើអ្នកចង់ផ្គូផ្គងសោភ័ណភាពនិងបរិស្ថាន។ អាចរកបាននៅក្នុងបន្ទះក្តាររទេះកង់ស្តង់ដាររបស់យើងឬយើងអាចកាត់បន្ថយទំហំយើងសូមស្វាគមន៍ចំពោះសំណួររបស់អ្នក។ អ្នកជិះកង់ស្តង់ដាររបស់យើងមានផ្នែកខាងលើប្រឆាំងនឹងរអិលប៉ុន្តែយើងក៏អាចផ្គត់ផ្គងនឹងកំពូលដែលនៅជាប់គ្នាផងដែរ។ សម្រាប់ឧស្សាហកម្មម្ហូបអាហារនិងភេសជ្ជៈ។ ការជាន់របស់យើងត្រូវបានធានាសុវត្ថិភាពនៅខាងក្រោមដោយប្រើឈុតរបស់យើង 316 s / s ប្រភេទ M ដែលសង្កត់។
ប្រសិនបើអ្នកកំពុងសាងសង់ការិយាល័យសាធារណៈដែលមិនមានសុវត្ថិភាព។ ការរអិលច្រមុះរអិលគឺជាមធ្យោបាយដ៏ល្អដើម្បីធានាថាជណ្តើរមានសុវត្ថិភាព។ ការប្រឆាំងនឹងការរអិលជណ្តើរច្រមុះអាចកាត់បន្ថយការកើតឡើងនៃគ្រោះថ្នាក់ដែលកើតឡើងយ៉ាងខ្លាំង។ អាចក្លាយទៅជារអិលនៅពេលជណ្តើរអាចរអិល។ ជាមួយនឹងគែមហ្គ្រីបហ្គីបដែលមានគុណភាពខ្ពស់អេហ្វភីអេហ្វប្រឆាំងនឹងរអិល Nosing Stap ពីម៉ូណាកូអ្នកអាចធ្វើឱ្យប្រាកដថាគែមនាំមុខនៃរអិលសូម្បីតែនៅក្នុងលក្ខខណ្ឌសើមបំផុត។ ថ្នាំងជណ្តើររអិលទាំងនេះអាចត្រូវបានបំពាក់នៅក្នុងស្ថានភាពផ្សេងៗគ្នារួមទាំងទីធ្លាសាធារណៈសួនឧស្សាហកម្មស្ថានីយ៍រថភ្លើង។ ជណ្តើររថក្រោះឧស្សាហកម្មកន្លែងឧស្សាហកម្មនិងពាណិជ្ជកម្មសាលារៀនវាលជិះស្គីការរត់គេចខ្លួនអណ្តូងប្រេងកំពង់ផែគែមរបស់យើងអេហ្វភីអេសប្រឆាំងនឹងរអិលនៅក្នុងជណ្តើរយន្តអេហ្វភីអេសប្រឆាំងនឹងរអិលអាចបង្កើតបានយូរនិងមិនគួរឱ្យជឿ។ ផ្ទៃដែលធន់ទ្រាំនឹងរអិល។ យើងផ្តល់ជូននូវផ្ទៃដែលមានភាពធន់នឹងការរអិលពីរកន្លែងពន្លឺស្រាលមួយដែលត្រូវបានបង្កើតឡើងសម្រាប់ស្ថានភាពផ្ទៃខាងក្នុងនិងស្នាមក្រាលធ្ងន់ជាងមុនដែលត្រូវបានបង្កើតឡើងសម្រាប់ការប្រើប្រាស់ខាងក្រៅ។ ជណ្តើរគែមជណ្តើរអេហ្វភីអេចប្រឆាំងនឹងរអិលជណ្តើរដោយមានប៉មដែលមានប៉ាតង់ដែលអាចត្រូវបានប្រើសម្រាប់រាល់ការប្រឆាំងនឹងរអិល កន្លែងខួងប្រេងផតថលគែមរបស់យើងអេហ្វភីអេសប្រឆាំងនឹងរអិលរអិលនៅលើកំណាត់ធ្វើពីសរសៃអុបទិករឹងមាំ។ យើងផ្តល់ជូននូវផ្ទៃដែលមានភាពធន់នឹងការរអិលពីរកន្លែងពន្លឺស្រាលមួយដែលត្រូវបានបង្កើតឡើងសម្រាប់ស្ថានភាពផ្ទៃខាងក្នុងនិងស្នាមក្រាលធ្ងន់ជាងមុនដែលត្រូវបានបង្កើតឡើងសម្រាប់ការប្រើប្រាស់ខាងក្រៅ។ ជណ្តើរគែមជណ្តើរអេហ្វភីអេចប្រឆាំងនឹងរអិលជណ្តើរដោយមានប៉មដែលមានប៉ាតង់ដែលអាចត្រូវបានប្រើសម្រាប់រាល់ការប្រឆាំងនឹងរអិល កន្លែងខួងប្រេងផតថលគែមរបស់យើងអេហ្វភីអេសប្រឆាំងនឹងរអិលរអិលនៅលើកំណាត់ធ្វើពីសរសៃអុបទិករឹងមាំ។ យើងផ្តល់ជូននូវផ្ទៃដែលមានភាពធន់នឹងការរអិលពីរកន្លែងពន្លឺស្រាលមួយដែលត្រូវបានបង្កើតឡើងសម្រាប់ស្ថានភាពផ្ទៃខាងក្នុងនិងស្នាមក្រាលធ្ងន់ជាងមុនដែលត្រូវបានបង្កើតឡើងសម្រាប់ការប្រើប្រាស់ខាងក្រៅ។ ជណ្តើរគែមជណ្តើរអេហ្វភីអេចប្រឆាំងនឹងរអិលជណ្តើរដោយមានប៉មដែលមានប៉ាតង់ដែលអាចត្រូវបានប្រើសម្រាប់រាល់ការប្រឆាំងនឹងរអិល

CHANCON ផលិតផលគួរឱ្យចាប់អារម្មណ៍កាតាឡុក
ណែនាំកាតាឡុកនៃព្រលានយន្តហោះនាង Shannon របស់ខ្លួន # ជជែកកំសាន្តលីនខុន មជ្ឈមណ្ឌលសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅការបង្ហូរទឹក prefabricated ។ មានសំភារៈនិងការរចនាប្លែកៗ។ ធ្វើឱ្យមានជំរើសច្រើនបំផុតនៅលើពិភពលោក។     គុណភាពថ្នាក់ពាក្យ # ម៉ានួនគ្របដណ្តប់ # អ្នកឯកទេសបំរែបំរួលលំហូរ។

1-6 Gully Grating : ខ្សែផលិតផលផ្លូវបង្ហូរទឹក។ ដាក់សំរាមដាក់ក្នុងឡានថ្មក្បែរផ្លូវដើរដើមឈើ។

គម្របមេនណូយ ៧-៩ ៖ ក្រុមផលិតផលគម្របបំពង់ដែកដែលមានរាងជាបំពង់។ ជ័រលាយកញ្ចក់កែវ។   ១០-១៥ ទាក់ទងនឹងការដឹងគុណ : ការតុបតែងលំអ។ ឈុតចាក់សោឧបករណ៍គៀបដែកការ ទាញយក ដែក   … ខិត្តប័ណ្ណជីងជីងទាញយក …

សេចក្តីយោងគម្រោងគំរូអតិថិជន។ ពាក្យសុំ របៀបទិញ។ ស៊ីឡាំងផ្លាស្ទិចភី។ សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅចំពោះដែកថែបដែលធ្វើពីដែក។ កញ្ចក់ជាតិសរសៃដ៏អស្ចារ្យ។ គំរបស្រះ, គម្របបំពង់, ធុងបង្ហូរទឹក។ ក្រុមប្រឹក្សាភិបាល។ Hook Hanger Hook ។ គម្របច្រមុះជណ្តើរប្រឆាំងនឹងរអិល។ កាំជណ្ដើរប្រឆាំងនឹងរអិល, កាំរស្មីកែវកញ្ចក់ឆ្លុះបញ្ចាំង។

อអាងហែលទឹកប្លាស្ទិចសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅស្ប៉ាលើសចំណុះ, grating បង្ហូរលើសចំណុះប្លាស្ទិចនៅជុំវិញអាងទឹក prefabricated | ចានដែក welded ដុតចានបញ្ចប់ដែកធ្លាក់ចុះជម្រុញ ,, ជម្រុញឱ្យក្តៅបារផ្សារដែកត្រូវបានថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅដែកកាបូនរបស់ | ស្រមុងដែលមានជាតិសរសៃបង្ហូរសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។ កញ្ចក់, សំឡីកែវរន្ធណ GFRP អាងYüzme grating | Scupper ទប់ស្កាត់, ការគ្រប់គ្រងលូអន្ទាក់ Sieve បានទប់ស្កាត់ធូលីដីកាកសំណល់ទុកគែមម្ខាងនៃចិញ្ចើមផ្លូវ | ទប់ស្កាត់ការ ductile លូបង្ហូរទឹកបានយ៉ាងល្អបំពង់ដែកស្មិត ,, ductile សម្រាប់ជាតិដែក Kanalizasyon manholes គម្រប | ទប់ស្កាត់សរសៃបំពង់ផងដែរ។ កញ្ចក់, អេហ្វភីអេសបឺលីបបឺរម៉ាណូវ័រគម្រប, កម្រាលឥដ្ឋ។ នេះជាការកើនឡើងលើកឡើងជាន់ទីប្រើ | EggCrate, របាំង facade ពាក់បន្ទះបន្ទះឈើគ្របដណ្តប់អគារ | ។ ផេហ្គ័រគ្រឿងឧបករណ៍ហូកឃីងក្តារបន្ទះដែកឧបករណ៍ចាក់។ , ហុក, ខ្សែភ្លើង, ហាន់ឃ័រ, ក្តារ បន្ទះក្តារ | ក្តា រជណ្តើរយន្តប្រឆាំងនឹងរអិល GFRP, គម្របជំហ៊ាន Nosing, ផ្លាកផ្លាកផ្លេសក្រៅក្រៅមិនរអិលគម្របច្រមុះគម្របគែមកាំជណ្ដើរ បង្កាន់ដៃផ្ទៃសន្លឹកកម្រាលជាតិសរសៃកញ្ចក់ | ឈុតតារាងរាងមានការគៀកែប្រែចាក់សោសំខាន់សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ, សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅដែកបាររនុកគឺនៅលើគន្លឹះរឹចាក់សោ, និងឈុតចានអ្នកកាន់ចាក់សោបង្ហូរចេញ។

ទំព័រដើមរបស់ឈីហ្វុន (ម៉ឺនុយផលិតផល) ម៉ឺនុយហូមខុនខុន
– ក្រុមហ៊ុនថៃដ៏អស្ចារ្យ។     GFRP- ដែកថែប – ប្លាស្ទិក – ភីភីអេសអេសអាងហែលទឹកហៀរទម្រដែកថែបរណាររណាររណារក្រដាស់ក្រឡុក / បង្កើតសរសៃកញ្ចក់ខាសដែកចាក់ដែកគម្របដែកគម្របដែកថែប / ឧបករណ៍ភ្ជាប់យុថ្កាភ្ជាប់ឈុតខ្សែអាត់ភ្ជាប់ឌីសជួសជុល ឧបករណ៍តម្លើងក្តារចុចជាប់នឹងឧបករណ៍ភ្ជាប់ដែកថែបផ្លេស្ទិច / រនាំងបង្ហូរទឹកកោងភ្ជាប់បំពង់បង្ហូរទឹក / កន្ត្រៃបង្ហូរទឹក / ស្នាមជៀងរនាស់ប្រដាប់ប្រដារប្រដាប់ប្រដារប្រដាប់ប្រដារ DIY Hook:

សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅដោយប្រើជាតិសរសៃកញ្ចក់បង្ហូរទឹកផ្លាស្ទិចនៅលើគែមអាង។ ដែកថែបធ្វើពីដែកធន់នឹងច្រែះ។ អន្ទាក់អន្ទាក់សម្រាប់កាកសំណល់អាហារ។ គម្របរឹងរណ្តៅបិទជិតគម្របបំពង់ដែកសរសៃដែកលួស។ កំរាលឥដ្ឋ, ផ្លូវដើរកើនឡើង។ គ្រឿងបន្លាស់ហុកព្យួរទំពក់ចានក្តារបន្ទះក្តារបន្ទះដែកបន្ទះប្រហោងប្រហោងប្រហោងជញ្ជាំងជញ្ជាំងផ្ទុកកន្លែងដាក់ឧបករណ៍ឧបករណ៍ ទំនាក់ទំនងនិងសាកសួរ។ ទំនាក់ទំនងដើម្បីបញ្ជាទិញផែនទី។ តម្លៃបញ្ចុះ     A. ទាក់ទងមកយើងខ្ញុំៈទំនាក់ទំនង ផែនទីសម្រាប់ទទួលទំនិញគណនីធនាគារលក្ខខណ្ឌចែកចាយ     B. តម្លៃ – សម្រង់ៈពិនិត្យតម្លៃផលិតផលស្នើសុំថ្លៃដកស្រង់ពិសេសការបញ្ចុះតំលៃ     C. ឯកសារគម្រោង៖ គំរូអតិថិជន ពាក្យសុំ វិធីជ្រើសរើសទិញ     D. ការបញ្ជាក់និងសេវាកម្ម៖ និយមន័យនៃលំដាប់ផលិតកម្មការតំឡើងការរចនាលទ្ធផលតេស្តការទទួលយក – សារធាតុគីមី។
E. អំពីពួកយើង (អ្នកជំនាញក្នុងការធ្វើម៉ាស៊ីន)៖ កិនស្រូវថៃ | ក្រុមហ៊ុនចាន់ខនគ្រុបរបស់ក្រុមហ៊ុន (ក្រុមហ៊ុនផ្លាស់ប្តូរ)
    F. ការលក់អ្នកចែកបៀចង់បាន៖ ស្នើសុំធ្វើជាអ្នកចែកចាយ។ ជ្រើសរើសបុគ្គលិកផ្នែកលក់
    ជីផែនទីលក់ទំនិញៈផែនទីតំលៃទំនិញទាំងអស់។ បង្ហូរទឹកសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។ CAP បានយ៉ាងល្អបំពង់គ្របដណ្តប់
លើសចំណុះលើសចំណុះសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅបង្ហូរសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។     មា៉សុីន ផ្លូវ ទី ១. ផ្លាស្ទិចប៉ូលីព្យូលីនផ្លាស្ទិចខ្ជីខ្ជាបំពង់បង្ហូរទឹក។ ផ្លាស្ទិចស្អិតរឹងមាំពិសេសភី     ។ ភី ។ ២ ។ ដែកថែបដែកថែបច្របាច់បញ្ចូលដែកសន្លឹកផ្សារដែកធ្វើពីដែកធ្វើពីដែក។ សម្រាប់ផ្លូវដែកបង្ហូរទឹកផ្លូវទឹក     ៣. អេហ្វ។ អេហ្វ។ អេ។ ភី។ អេស។ អេស។ អិល កំរាលឥដ្ឋ, ផ្លូវដើរនៅក្នុងរោងចក្រ    ៤. ការបូមទឹកបង្ហូរទឹកហូរតាមបណ្តោយនៃអាងហែលទឹកអេប៊ីអេសអេជ។
    ៥. បើកឡាន HighWay Lerain Side Drain Grating អន្ទាក់សំរាមគំនរធូលីដីដំបងថ្មស្លឹកចំហៀងចំហៀងផ្លូវ
    ៦. ឆ្មាំមែកធាងធ្វើស៊ុម Paver ស៊ុមគម្របព័ទ្ធជុំវិញមូលដ្ឋានដើមឈើដែលបានបញ្ចប់។
គម្របមេនណូបបិទបាំងបំពង់បង្ហូរទឹក។     ៧ ។ គម្រប     បំពង់ខ្យល់ដែកគម្របគម្របដែក គម្របធុងកញ្ចក់កែវជ័រលាយជ័រ (មិនច្រែះដែកអ៊ីណុកជំនួស) ៨. គម្របបំពង់ដែកមានរាងមូល (រាងមូល / រាងការ៉េ) គំរបបំពង់បំពង់ចាក់បំពង់ដែកការព្យាបាលទឹក     ៩ ។ គម្របពេជ្រកំពូលអេហ្វភីអេច (កាត់ពិសេស) គម្របបំពង់គម្របបំពង់កែវសរសៃត្រូវបានកាត់តាមលំដាប់។ នេះជា ក្រុមប្រឹក្សាភិបាលលោកស្រី Peg បរិក្ខារសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅឈុតហូគម្របសោផ្ទៃប័ណ្ណ   10. បន្ទះអេក្រង់ស៊ុតពិការភ្នែក crates slats សំណាញ់ពិដានប្លុករបាំងភ្លើងគម្របប្រអប់ពន្លឺ។ តម្រងខ្យល់។
  11. ពិដាន Trellis ស្រមោលស្រមោលឈុតនៃពិដានបន្ទះជញ្ជាំងវាំងនន។ របងភាគថាស។ តុសសកុដិ
  Truss 12. ឧបករណ៍បង្ហាញ PegBoard Hooks Shelves Perforated Rack Peg board board ម៉ោនរន្ធជញ្ជាំងព្យួរឧបករណ៍ផ្ទុកឧបករណ៍ Hook Hanger Hook
  ១៣. អេហ្វភីអេសជណ្តើរជាន់ជណ្តើរការពារច្រមុះគម្របច្រមុះច្រមុះគែមគម្របរអិលផ្ទាំងកញ្ចក់។ គ្របលើផ្ទៃដែលមិនរអិល។ ការជំនួសកាសែតប្រឆាំងនឹងរអិល។ ខ្សែអាត់ឆ្នូត fluorescent
  ១៤. អេចជីជីដែកថែបក្លីបក្លីដក្លីតឃ្លីបចាក់សោរឃ្លីបចាក់សោរកាន់បន្ទះសំណាញ់។ ដែកអ៊ីណុក / ដែកធន់នឹងច្រែះ
  ១៥. ប្រព័ន្ធ FormWork Ties: TieRod / ThreadBar ។ ដែកថែបធន់ខ្ពស់ WingNut WaterStopper ។

ទំនាក់ទំនងអាមេរិក៖ ក្រុមហ៊ុន CHANCON GRATINGTHAI
ទាក់ទងក្រុមហ៊ុន ចាន់ខនខន ខូអិលធីឌី – ក្រុមហ៊ុនថៃហ្គ្រោនលីមីតធីត។

សាន់ណុនជាក្រុមហ៊ុនផលិតឯកទេស។ បានបញ្ចប់ប្រព័ន្ធបញ្ចូលបំពង់បង្ហូរទឹក។ កំរាលឥដ្ឋ។ កំរាលឥដ្ឋ។ អន្ទាក់សំរាមនៅក្បែរចិញ្ចើមផ្លូវ។ កាំជណ្ដើរជំហាន។ ទំងន់ស្រាលលើកកំរាលកំរាល។ លាងសមាតឱ្យបានល្អ។ គម្របបំពង់។ កំរាលឥដ្ឋនៅក្នុងទីធ្លាផលិតកម្មពហុមេន។ បន្ទះផ្គូផ្គងជុំវិញម៉ាស៊ីនប្រឆាំងនឹងរអិល។ ប្រព័ន្ធប្រព្រឹត្តិកម្មទឹកសំណល់កំពូលផ្លូវដើរ។ ជំហានប្រឆាំងនឹងការរអិលសម្រាប់ជណ្តើរដែកនៅក្នុងរោងចក្រ។ បន្ទះព្យួរឧបករណ៍ PegBoard Hooks មានភាពធន់នឹងការ corrosion ពីទឹកប្រៃទឹកភ្លៀងទឹកអាស៊ីតច្រែះនិងបញ្ហាគីមី។

Grating_Manhole_Expert | រោងចក្រ, ក្រុមហ៊ុនផលិត, លក់ដុំ – លក់រាយ | ជ្រើសរើសបុគ្គលិកអ្នកចែកចាយអ្នកលក់ភ្នាក់ងារចែកចាយអ្នកចែកចាយ || សូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅ។ គម្របធុងទឹកកាកសំណល់។

ក្រុមហ៊ុន CHANCON ខូអិលធីឌី | ជីងមីងថៃខូអិលធីឌី (ការិយាល័យកណ្តាលទល់មុខរ៉ាម៉ាកណ្តាល ២) លេខ ១៩៩ ថេថាខ ២១/១ សាម៉ាដាមបាងឃុនធានក្រុងបាងកកប្រទេសថៃ។ ១៩៩ ផ្លូវហាម៉ាន ២១ / ១ ផ្លូវតាកហាមបាងកាងទីក្រុងបាងកកថៃ ១០១៥០ ទូរស័ព្ទ ទូរស័ព្ទ (ការលក់)៖ ០៨១ ៩៣២ ៧៨៩៤, ០៦១ ៦៤៧ ០១៨៤-៦     ទូរស័ព្ទ៖ ០២ ៤៥១ ០៧៨០-១, ទូរសារ៖ ០២ ៤៥១ ០៧៨៦
អ៊ីម៉ែលៈ mkt@chancon.co.th   | Line @: @iCHANCON

អាមេរិកវេបសាយ: Http://www.CHANCON.co.th   |   Www.GratingThai.co.th | Http://GRATINGTHAI.com |
http: // www នេះសូមថ្លែងអំណរគុណយ៉ាងជ្រាលជ្រៅសំឡីកែវ – រវាងមួកបំពង់ដែកថែប .com នេះ CAP បាន។ ។ | www ។ .KanokMat.com | www.PongSa.com ។

FaceBook៖ https://www.facebook.com/weChancoN
Youtube: http://www.youtube.com/mktchancon
Twitter: http://twitter.com/fibergrating
Google Plus: https://plus.google.com/ + ChanconTh
Pinterest: https://www.pinterest.com/FRPSteelGratingManholecover/boards/
Instagram: https://www.instagram.com/fibermanhole_gratingthai/
BlogSpot: http://chanconfrpgrating.blogspot.com/
